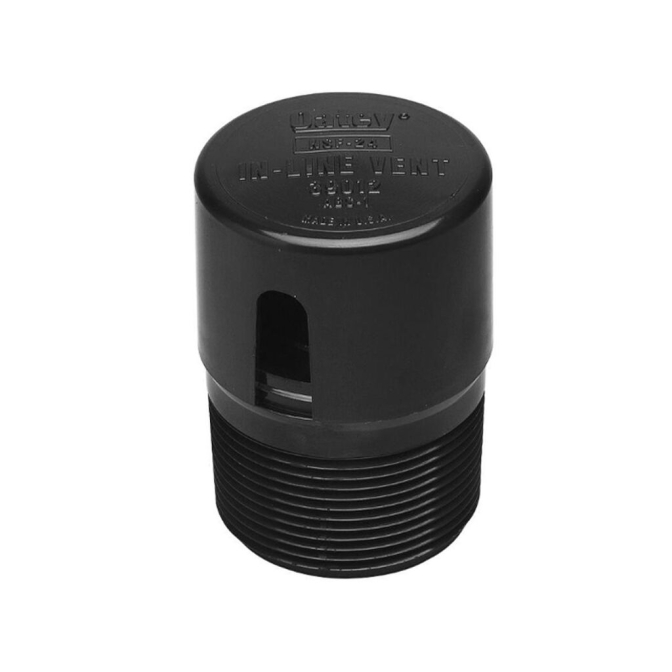

1-1/2" ABS Provent, Male
$3.76
1-1/2 inch ABS Provent Male
More Information | Diameter | 1-1/2" x 2" |
|---|
| Material | ABS |
|---|
Description
Details
1-1/2 inch ABS Provent, MNPT. 2-7/8 inch length x 2 inch OD x 1-1/8 inch Thread LengthFeatures
Features
- Manufactured housing and RVs only
- Automatic anti-siphon trap vent used as secondary venting
- Must be located at least 60 in above trap arm
- Two individually protected fixtures may be connected to same 1 1/2 in drain
- Three or more fixtures must be drained by 2 in line
- Simply hand tighten, no thread seal needed
- Water closet must have main stack to outside
- Must be installed in accessible location with free flow air
- Do not install in sealed wall cavity
- Dimensions: 2-7/8 in L x 2 in OD x 1-1/8 in Thread Length
- Specifications: 1-1/2 in MNPT
