Single Point Stainless Steel Float Switches
-
Side Mount, Mini Float Switches -
High Pressure, & Buoyancy Float Switches -
High & Low Float Switches -
Side Mount Float Switches

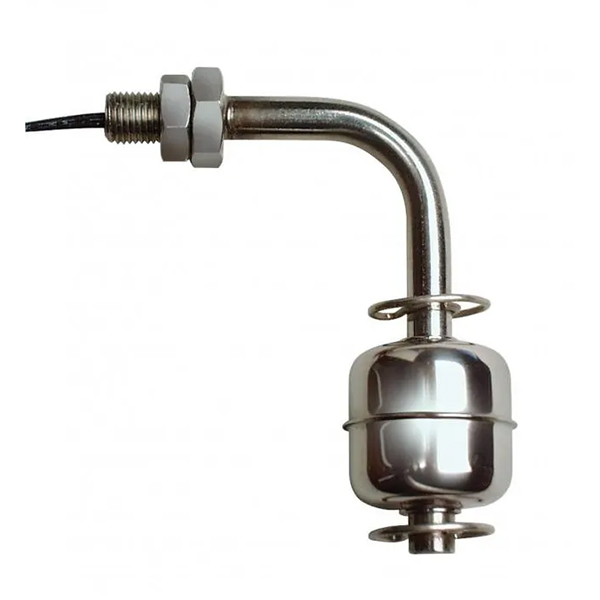

Side Mount, Mini Float Switches
| Float Material | Stem Material | Float Diameter | Mounting | Max. Pressure | Max. Temperature | Voltage (AC) | Current (AC) | Approvals | Price |
| 316 Stainless Steel | 316 Stainless Steel | 1.9" | 3/8-24 UNF | 300 PSI | 392°F / 200°C | 240V | 0.14A, 0.28A | CE, UL, CSA | $151.00 |
| 316 Stainless Steel | 316 Stainless Steel | 1.13" | 1/8" NPT | 300 PSI | 392°F / 200°C | 240V | 0.14A, 0.28A | CE | $95.00 |
| 316 Stainless Steel | 316 Stainless Steel | 1.13" | 1/8" NPT | 300 PSI | 392°F / 200°C | 240V | 0.14A, 0.28A | CE | $95.00 |
| 316 Stainless Steel | 316 Stainless Steel | 1.0" | 3/8-24 UNF | 300 PSI | 392°F / 200°C | 240V | 0.14A, 0.28A | CE, NSF, UL, CSA | $95.00 |
| Buna- N | 316 Stainless Steel | 1.0" | 1/8" NPT | 150 PSI | 221°F / 105°C | 240V | 0.14A, 0.28A | CE | $89.00 |
| Buna- N | 316 Stainless Steel | 1.0" | 3/8-24 UNF | 150 PSI | 221°F / 105°C | 240V | 0.14A, 0.28A | CE | $89.00 |

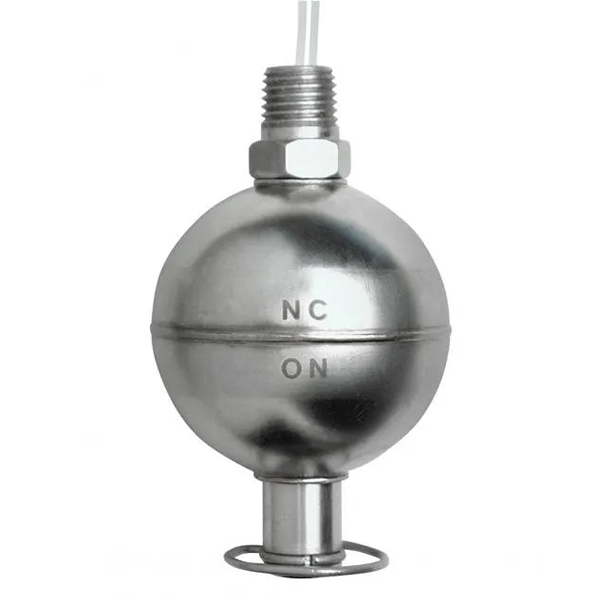

High Pressure, & Buoyancy Float Switches
| Float Material | Stem Material | Float Diameter | Mounting | Max. Pressure | Max. Temperature | Voltage (AC) | Current (AC) | Approvals | Price |
| 316 Stainless Steel | 316 Stainless Steel | 3.5" | 1/2" NPT | 300 PSI | 392°F / 200°C | 120V, 240V | 0.40A, 1.0A | CE | $135.00 |
| 316 Stainless Steel | 316 Stainless Steel | 3.5" | 1/2" NPT | 300 PSI | 392°F / 200°C | 120V, 240V | 0.40A, 1.0A | CE | $443.00 |
| 316 Stainless Steel | 316 Stainless Steel | 2.05" | 1/4" NPT | 750 PSI | 392°F / 200°C | 120V, 240V | 0.40A, 1.0A | NSF, UL, CSA | $97.00 |

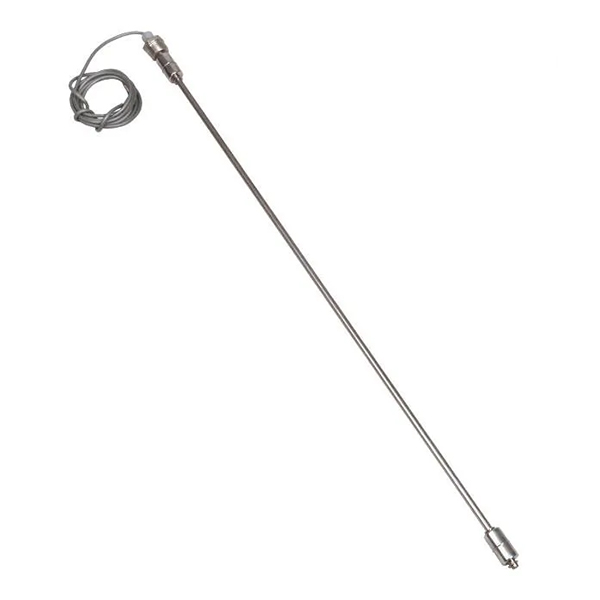

High & Low Float Switches
| Float Material | Stem Material | Float Diameter | Mounting | Max. Pressure | Max. Temperature | Voltage (AC) | Current (AC) | Approvals | Price |
| 316 Stainless Steel | 316 Stainless Steel | .90" | 3/4" NPT | 250 PSI | 302°F / 150°C | 120V, 240V | 0.14A, 0.28A | CE, NSF | $406.00 |
| 316 Stainless Steel | 316 Stainless Steel | .90" | 3/4" NPT | 250 PSI | 302°F / 150°C | 120V, 240V | 0.14A, 0.28A | CE, NSF | $243.00 |
| 316 Stainless Steel | 316 Stainless Steel | .90" | 3/4" NPT | 250 PSI | 302°F / 150°C | 120V, 240V | 0.14A, 0.28A | CE, NSF | $224.00 |

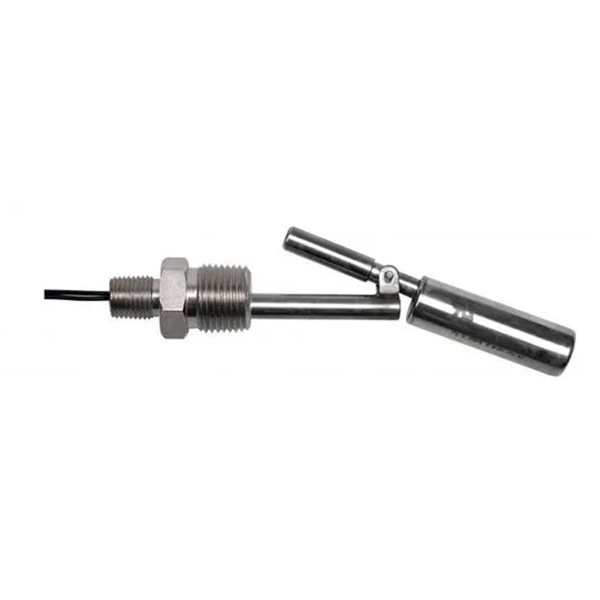

Side Mount Float Switches
| Float Material | Stem Material | Mounting | Max. Pressure | Max. Temperature | Voltage (AC) | Current (AC) | Approvals | Price |
| 316 Stainless Steel | 316 Stainless Steel | 5/8-11 UNC | 30 PSI | 100°F / 37.8°C | 120V, 240V | 0.14A, 0.28A | CE | $199.99 |
| 316 Stainless Steel | 316 Stainless Steel | 1/2-13 UNC | 100 PSI | 392°F / 200°C | 120V, 240V | 0.14A, 0.28A | CE, NSF, UL | $175.00 |
| 316 Stainless Steel | 316 Stainless Steel | 1/2" x 1/4" NPT | 300 PSI | 392°F / 200°C | 120V, 240V | 0.14A, 0.28A | CE, NSF, UL Haz. Loc., CSA Haz. Loc. | $197.00 |
| 316 Stainless Steel | 316 Stainless Steel | 1/2" x 1/4" NPT | 300 PSI | 392°F / 200°C | 120V, 240V | 0.14A, 0.28A | CE, NSF, UL Haz. Loc., CSA Haz. Loc. | $197.00 |
| 316 Stainless Steel | 316 Stainless Steel | 1" x 1/2" NPT | 300 PSI | 392°F / 200°C | 120V, 240V | 0.14A, 0.28A | CE, NSF, UL Haz. Loc., CSA Haz. Loc. | $215.00 |
