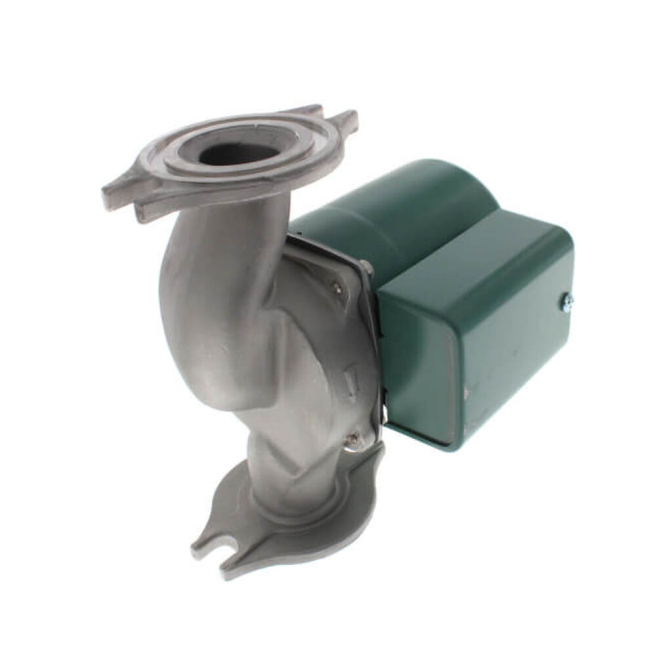

Taco Cartridge Circulator Pump, Series 007S, 23 gpm, 1 inch, 1-1/2 inch, 1-1/4 inch, 3/4 inch inlet, 10 feet Maximum Head, 1/25 hp, 115 VAC, 0.76 A, 60 Hz, 125 psi Maximum, 3250 rpm Motor, 40 to 230 degree Fahrenheit, ODP, 6-3/8 inch length x 4-3/4 inch Width x 6-3/8 inch H
The Taco 007 Cartridge Circulator is the most popular hydronic circulator sold today. with its field serviceable cartridge design, the compact 007 provides quiet, efficient operation and unmatched reliability. The self-lubricating, maintenance free design and flow characteristics make it the ideal hydronic circulator for a wide range of applications.
Features
Features
Frequency Rating: 60 Hz
Inlet Size: 1 in, 1-1/2 in, 1-1/4 in, 3/4 in
Maximum Head: 10 ft
Maximum Pressure: 125 psi
Motor Speed: 3250 rpm
Power Rating: 1/25 hp
Voltage Rating: 115 VAC
Dimensions: 6-3/8 in L x 4-3/4 in W x 6-3/8 in H
Enclosure Type: ODP
The Taco 007 is a cartridge style, maintenance free, wet-rotor, in-line, single stage circulator pump
Self lubricating
No mechanical seal
Unmatched reliability-maintenance free
Universal flange to flange dimensions
Permanent split capacitor impedance protected type motor
Standard flanged orientation
It is designed for quiet operation in hydronic heating, radiant heating, hydro-air fan coils, indirect water heaters, chilled fresh water, and domestic water recirculation systems
Stainless steel construction with universal flanged connections
The unique replaceable cartridge contains all of the moving parts and allows the circulator to be easily serviced instead of replacing the entire unit
