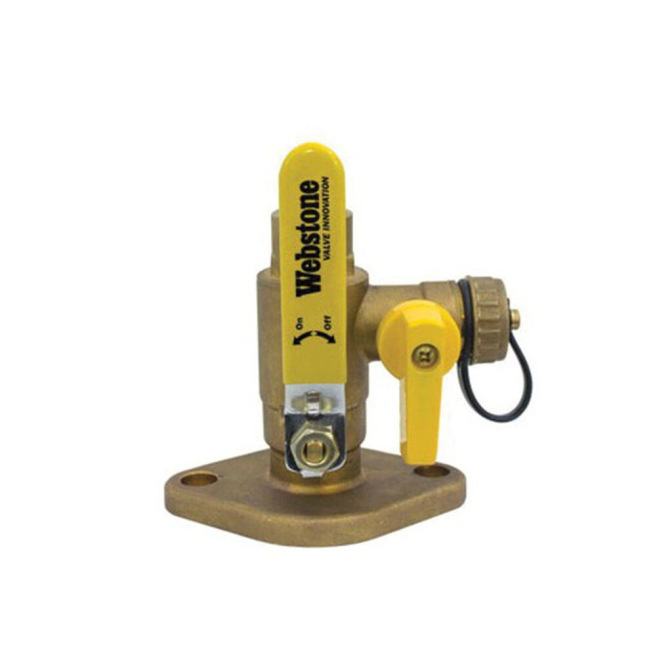

1-1/4" Brass Circulator Flange Ball Valve, with Drain

Features

• Heavy duty forged brass construction
• Replaces 6 components, eliminates 5 leak paths saves 45 min of labor
• Unique uni-body design
• Blowout proof stem
• Conical inlet to minimize turbulence
• Available slotted holes for high velocity pumps
• Full port forged brass uni-flange ball valve
• Patented technology
• With hi-flow hose drain, adjustable packing gland, nuts and bolts

• Inlet to Outlet Length: 4-7/16 in
• Nominal Size: 1-1/4 in
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Series: 4041
• Material: PTFE Seat/Stem Seal
• Temperature Rating: 100 deg F
• Top to Inlet Center: 2-7/8 in
• Warranty: Lifetime
• Domestic/Import: Import
• End Style: IPS x Flange
