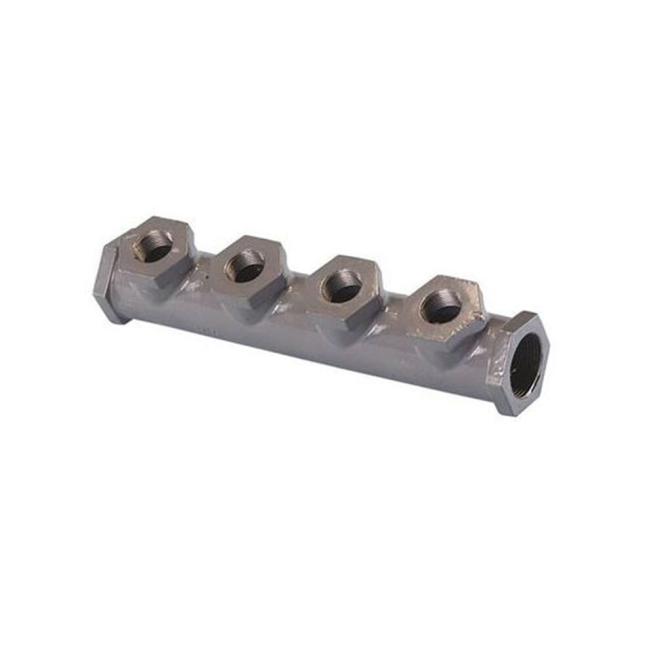

1-1/4" Inlet x 3/4" Outlets (4) Large Coated Manifold
$61.46
In stock
SKU
230813
1-1/4 inch Inlet x 3/4 inch Outlets (4) Large Coated Manifold
Description
Details
1 inch to 1-1/4 inch Inlet x 3/4 inch Outlet Large Coated Manifold. 25 psig, -20 to 200 deg F, Cast Iron, 2 in OD x 11-1/2 in L
Features
Features
Coated malleable iron
Multiple number of ports
Multiple number of sizes
May be mounted with brackets or in gas load centers
Manifolds used to facilitate parallel piping installations and may be used in concealed locations on low pressure systems without line pressure regulators
For use in concealed locations on low pressure systems without line pressure regulators
CSA international evaluation report - 125 psig max operating pressure, 3/8 in through 1-1/4 in
Must be installed in accordance with the TracPipe design guide and installation instructions and all applicable codes
