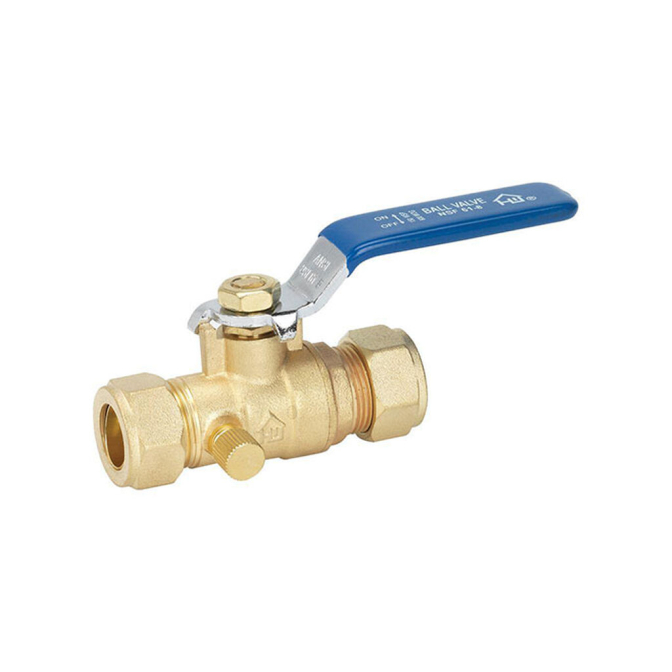

1/2" Brass Ball Valve, Full Port, Lead-Free, Compression x Compression

Features

• Zinc plated steel handle nut/even handle forged brass packing nut/compression nut/bleeder cap, PTFE stem packing, lead free forged brass stem/body/end adapter/compression ferrule, NBR rubber cap gasket, lead free chrome plate
• Full port ball valve with drain and compression ends for convenient installation onto copper tubing
• Dezincification resistant (DZR) forged brass resists corrosion from exposure to a wide variety of water conditions
• Bubble-tight shut-off and capped waste port permit isolation, drain down and servicing of the plumbing system, for maintenance or to prevent freeze-up
• Tubing compression connections permit easy, convenient, lead free compliant replacement of a worn, leaded valve, without the need for sweating
• Lead free design is suitable for all no lead potable water installations in full compliance of all lead free plumbing laws

• Inlet to Outlet Length: 3.08 in
• Nominal Size: 1/2 in
• Port Type: Full
• Pressure Rating: 400 psi
• Series: T-2002NL
• Material: PTFE Seat
• Top to Inlet Center: 1.69 in
• Warranty: 5/25 Years
• Domestic/Import: Domestic
• End Style: Compression
