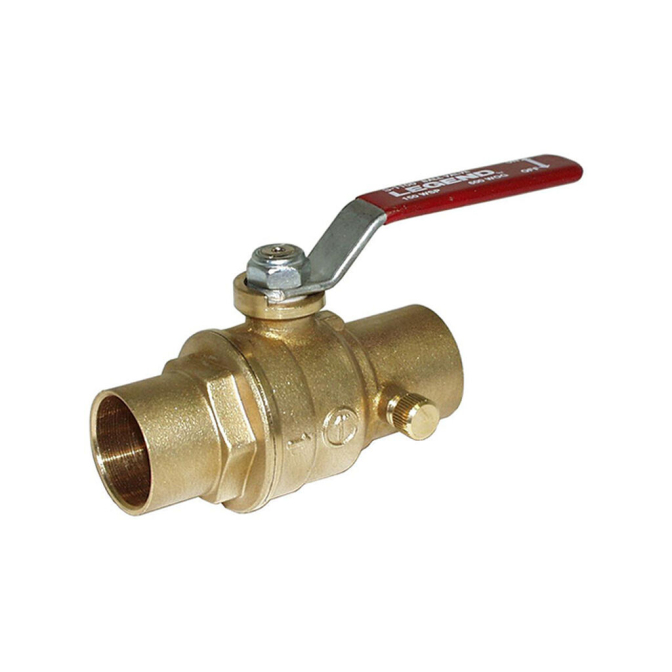

1/2" Brass Ball Valve, Full Port, Lead-Free, with Drain, Copper x Copper
$20.84
1/2 inch Brass Ball Valve Full Port Lead-Free with Drain Copper x Copper
Description
Details
1/2 inch nominal, C, 500 PSI Pressure Rating, 14.2 gpm, Full Port, Media: Water, Brass Ball, 2.29 inch inlet to Outlet Length, 1.42 inch Top to inlet Center, Brass Body, Brass Stem Trim, Softgoods Material: TFM PTFE Seat/Thrust Washer, Chrome PlatedFeatures
Features
- Dacromet coated steel handle nut/handle TFM PTFE anti-friction washer/thrust washer/seat, fluorocarbon o-rings, chrome plated forged brass stem/ball, forged brass body/end adapter/waste cap
- Waste drain allows line to be drained for maintenance or to prevent freeze-up
- A more durable alternative to conventional stop and waste valves
- Bottom loaded Blow-out-proof stem
- Lead free design is suitable for all no lead potable water installations in full compliance of all Lead free plumbing laws
- Inlet to Outlet Length: 2.29 in
- Nominal Size: 1/2 in
- Port Type: Full
- Pressure Rating: 500 psi
- Series: S-1100NL
- Material: TFM PTFE Seat/Thrust Washer
- Top to Inlet Center: 1.42 in
- Warranty: 5/25 Years
- Domestic/Import: Domestic
- End Style: C
- Flow Rate: 14.2 gpm
