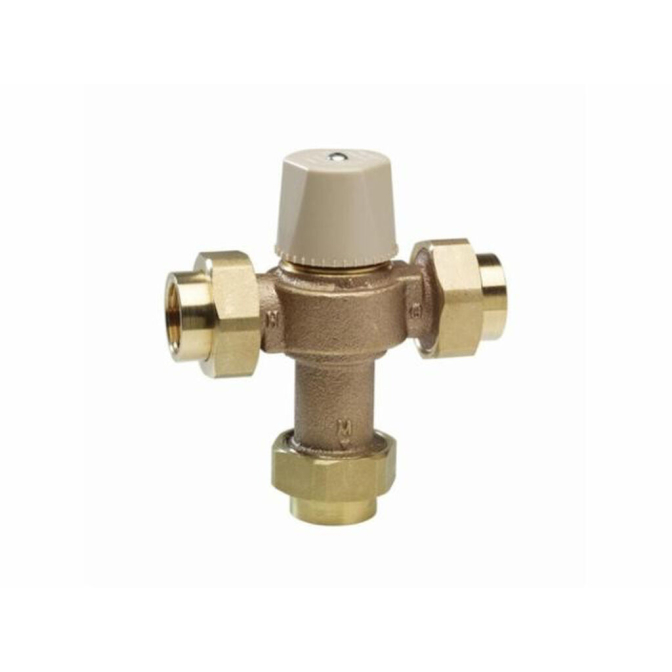

1/2" Copper Thermostatic Mixing Valve, Lead-Free, Union CPVC
$194.40
In stock
SKU
1954198
1/2 inch Copper Thermostatic Mixing Valve Lead-Free Union CPVC
Description
Details
WATTS 1/2 inch nominal Size, Union CPVC, 150 psi, 200 degree Fahrenheit, 0.5 to 20 gpm, Cast Copper Silicon Alloy Body, Buna-N/EPDM O-Rings, 4-3/4 inch Widtheight x 5-5/16 inch Height
Features
Features
Nominal Size: 1/2 in
Softgoods Material: Buna-N/EPDM O-Rings
Body Material: Cast Copper Silicon Alloy
Warranty: Limited
Dimensions: 4-3/4 in W x 5-5/16 in H
Includes: Integral Filter Washers and Check Valves and an Adjustment Cap with Locking Feature
Lead free cast copper silicon alloy body construction
120 to 180 deg F hot and 39 to 85 deg F cold inlet temperature
5 deg F above set point hot water inlet to outlet differential temperature
80 to 120 deg F temperature out field range
Accurate within +/- 3 deg F adjustable temperature out
0.5 gpm at 0.8 psi to 20 gpm at 125 psi flow
25% maximum pressure differential between hot and cold water supplies
When tested in accordance with ASSE 1017/1069/1070
Solid wax hydraulic principle thermostat assures dependable mixing of hot and cold water
Thermostat controls both hot and cold water
Solder, threaded, PEX or CPVC, quick-Connect end connection or with press
Adjustment cap with locking feature
The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
