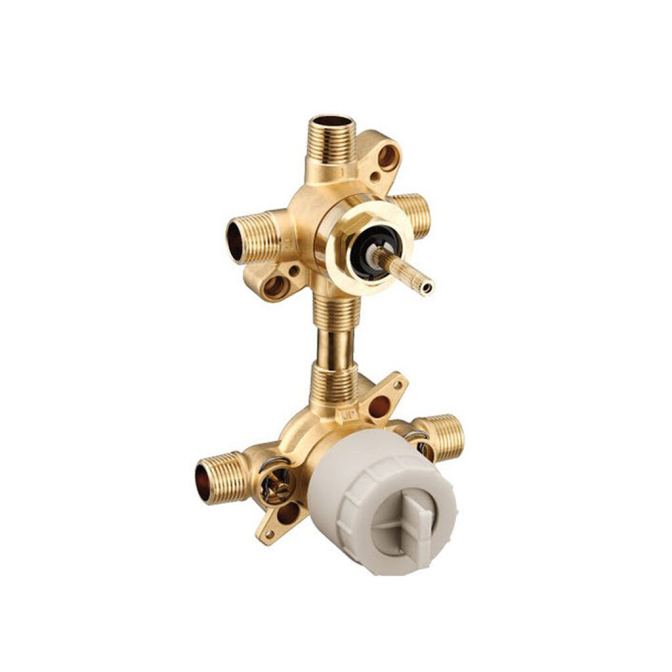

1/2" M-CORE Transfer Valve, Cc/Ips Connection Includes Pressure Balancing Stops Volume Control
$218.32
In stock
SKU
2012752
Description
Details
M-CORE with transfer, built on the Moen M-PACT common valve system, allowing you to update the faucet style in the future without replacing any plumbing, cartridge type: durable ceramic cartridge, connection size: 1/2", connection type: CC/IPS, no of ports: three_outlets
Features
Integrated M-CORE Transfer Valves can control 2 or 3 showering devices, a simple transfer cartridge modification changes the valve’s flow from two outlets to three outlets
When using 2 showering devices, the valve has 2 independent and 1 shared functions
When using 3 showering devices, the valve has 3 independent and 3 shared functions
IMPORTANT: When using 3 Showering Devices, transfer valve cartridge must be modified. Simple Cartridge Modification changes the valves flow from 2 outlets to 3 outlets. See Transfer Valve Instructions for additional information
IMPORTANT: When using 2 Showering Devices, designated outlet 3 must be CAPPED. Caps are not included with the transfer valves
M-CORE valves, with 3-Series trim, have pressure-balancing capabilities designed to control temperature fluctuations in the event of water pressure changes in the home
Brass construction
1/4 turn stops on each inlet
Transfer valve outlets match inlet connection type
Not tub outlet
Supplied flush plug allows testing up to 200 PSI with air (300 PSI water)
Installation in thin or thick wall applications
Mixing cartridge is supplied in the M-CORE 3-series trim kit
Includes 3 function / 6 function ceramic disk cartridge for transfer valve
Third party certified to meet ASME A112.18.1/CSA B125.1, and all applicable requirements referenced therein
