1/2" OD Brass Flared Union
$4.89

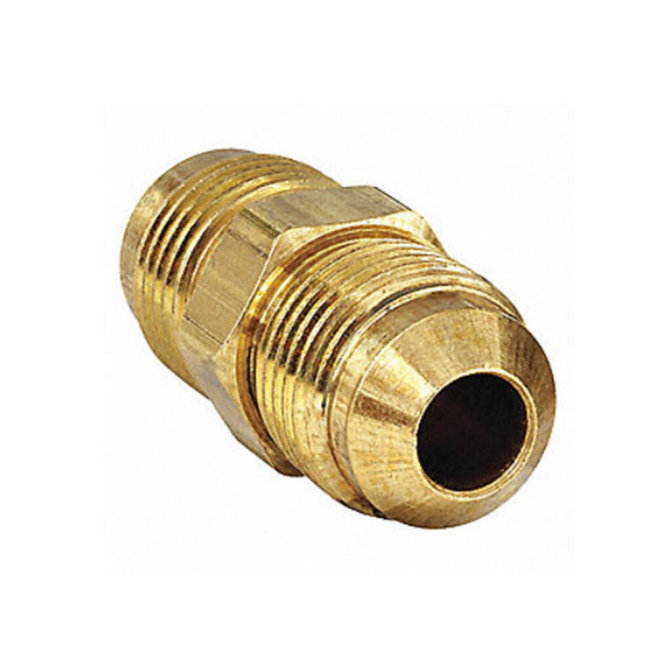

1/2 inch OD Brass Flared Union
More Information | Diameter | 1"ID (1-1/8" |
|---|
Description
Details
1/2 inch Brass Flared Tube Union. Nominal Size, Flared, 34 inch Hex, 1.79 inch Length, -65 to 250 degree FahrenheitFeatures
Features
- Recommended for higher pressures than those covered by compression fittings
- Resist mechanical pull out
- Designed for use with aluminum, copper, brass and welded steel tubing that can be flared
- For use with fuel, oil, liquefied petroleum and natural gas lines
- Good vibration resistance
- 3/4-16 straight thread
- C36000 brass body
- Length: 1.79 in
- Material: Brass
- Nominal Size: 1/2 in
- Series: 42
- Temperature Rating: -65 to 250 deg F
- End Style: Flared
- Hex Size: 3/4 in
