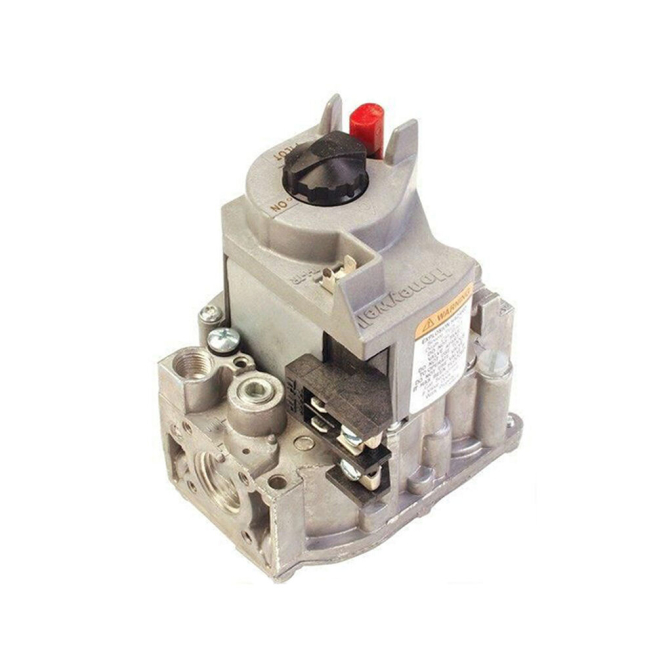

Honeywell Gas Valve, 1-Stage, Series: VR8200, 1/2 inch Nominal Size, 0.5 psi, Standing Pilot Ignition, 20000 to 200000 Btu/hr Nominal Capacity, Natural Gas, 24 VAC 60 Hz Coil, 1/4 inch Male Quick Connect Terminal, 0 to 175 degree Fahrenheit, 5-3/16 inch height x 4-1/8 inch Width x 3-1/4 inch D
Combination gas control for use inch 24 VAC gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.
Features
Features
Nominal Capacity: 20000 to 200000 Btu/hr
Size: 1/2 in
Pressure Rating: 0.5 psi
Temperature Rating: 0 to 175 deg F
Warranty: Limited
Coil Voltage: 24 VAC 60 Hz
Dimensions: 5-3/16 in H x 4-1/8 in W x 3-1/4 in D
Electrical Connection: 1/4 in Male Quick Connect Terminal
Controls include safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment
Compatible with ECO connector
LITE-RITE (Off-Pilot-On) lighting sequence
Straight-through body pattern
0 to 90 deg in any direction from the upright position of the gas control knob mounting
3-1/2 in WC pressure regulator setting
Standard opening gas vavle
Includes: (1) 3/4 in Straight Flange, (1) 1/2 x 3/8 in Reducer Bushing, Q340 Thermocouple and Natural to LP Conversion Kit
Compact design
Provides two automatic valves
Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
Diaphragm operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted
Meets codes requiring dual safety shutoff
Natural to LP and LP to natural conversion kits available for standard and slow opening gas valves
All adjustments, wiring connections and pilot outlet are accessible from top of control
Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
