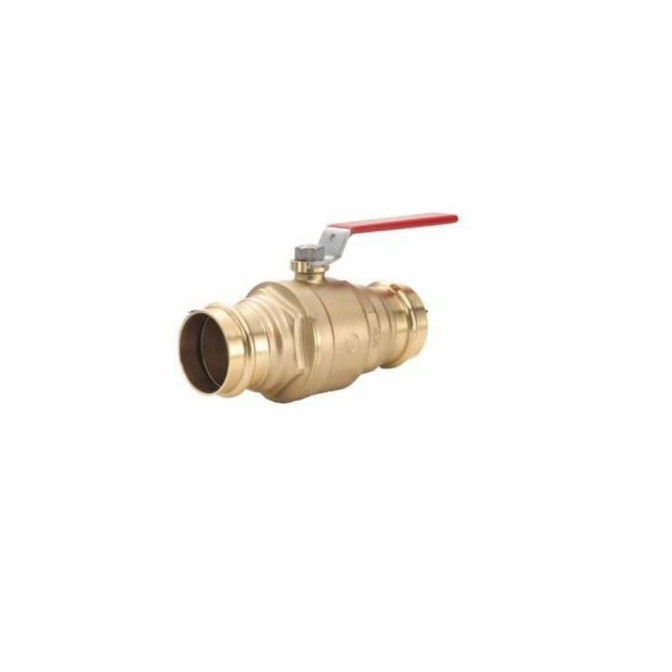

1" Brass EZ-Press Ball Valve, Lead-Free, Press x Press
$29.79
In stock
SKU
1947805
1 inch Brass EZ-Press Ball Valve Lead-Free Press x Press
Description
Details
1 inch nominal, Press, 500 PSI Pressure Rating, 230 degree Fahrenheit Temperature, Full Port, Media: Water, Lever Handle Actuator, Brass Ball, 4.77 inch inlet to Outlet Length, 2.06 inch Top to inlet Center, Brass Body, Brass Stem Trim, Softgoods Material: TFM PTFE Thrust Seat/Thrust Washer, Chrome Plated, 3.01 inch H x 6.13 inch W
Ball valve has the same proven viton o-ring stem design that eliminates the need for a packing gland and nut
Corrosion resistant Dacromet coated steel handle and oversized lever handle with per-drilled tag hole is ideal for commercial plumbing applications
Press sockets have greater depth for stabilizing the copper when pressing which assures a solid connection
O-rings for added assurance that a seal is made when pressed
Press-type end connections eliminate the need for soldering and brazing, reducing labor and material costs and eliminating the fire hazard associated with the process
Compatible with commercially-available VUS profile jaws
Strip gauge included, to verify a complete press
For all no lead potable water installations in full compliance of all lead free plumbing laws
