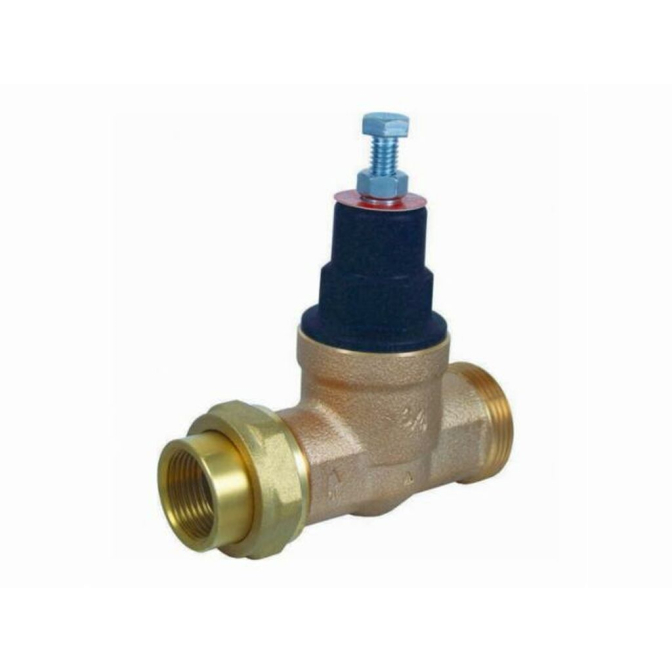

1" Bronze Single-Union Pressure Regulating Valve, Lead-Free
$111.79
1 inch Bronze Single-Union Pressure Regulating Valve Lead-Free
More Information | Diameter | 1/2" x 3/4" |
|---|
Description
Details
Cash Acme 1 inch nominal, NPT, 45 psi Pressure Rating, 180 degree Fahrenheit Temperature, Media: Water, 5.17 inch inlet to Outlet Length, 4.35 inch Top to inlet Center, Bronze Body, Stainless Steel/Brass Piston Trim, Softgoods Material: EPDM O-RingFeatures
Features
- Modular cartridge design reduces the number of parts requiring service-quick and easy service/repair
- Stainless steel strainer screen
- Rugged bronze body-superior reliability, improved user safety
- Compact pressure reducing and regulating valves-designed for small and economic considerations
- By-pass mechanism integral with the cartridge-no add-on or small parts, longer life and more reliable performance
- Every valve is tested for performance prior to shipping-specify and install with confidence
- Lead free
- 400 psi maximum inlet pressure
- 10 to 70 psi outlet pressure range
- Reinforced EPDM diaphragm
- Inlet to Outlet Length: 5.17 in
- Media: Water
- Nominal Size: 1 in
- Pressure Rating: 45 psi
- Softgoods Material: EPDM O-Ring
- Temperature Rating: 180 deg F
- Top to Inlet Center: 4.35 in
- Body Material: Bronze
- Warranty: 2 Years Limited
