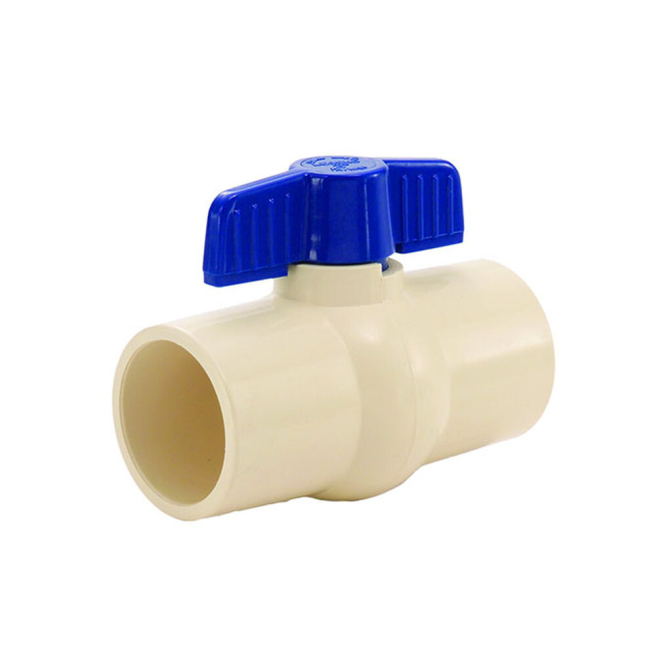

1" CPVC Ball Valve, Full Port, CPVC x CPVC
$12.19
1 inch CPVC Ball Valve Full Port CPVC x CPVC
More Information | Diameter | 4" x 4" x 3" |
|---|
Description
Details
1 inch nominal, Solvent Weld, 150 PSI at 73 degree Fahrenheit Pressure Rating, 180 degree Fahrenheit Temperature, Full Port, Media: Oil/Water, T-Handle Actuator, CPVC Ball, 3-3/4 inch inlet to Outlet Length, CPVC Body, CPVC Stem Trim, Softgoods Material: Dupont Teflon PTFE Seat/EPDM Seal, Bone, 3.88 inch HFeatures
Features
- Impact grade CPVC handle ASTM D1784, class 23447 CPCV stem/ball/body, commercial grade CPCV stem o-ring/handle retaining screw
- Large ports allow maximum flow and minimum pressure drop or turbulence
- Ball valves are constructed of ASTM D1784 virgin CPVC resin
- Severe shock loads and stress are absorbed by the valve body, not the ball and seats thereby minimizing the chance of uneven wear and leakage
- Compact-pattern molded-in-place body design
- Low torque, durable PTFE seats and in-line, one way flow style
- Inlet to Outlet Length: 3-3/4 in
- Nominal Size: 1 in
- Port Type: Full
- Pressure Rating: 150 psi at 73 deg F
- Series: S-605
- Material: Dupont Teflon PTFE Seat/EPDM Seal
- Temperature Rating: 180 deg F
- Warranty: 5/25 Years
- Dimensions: 3.88 in H
- Domestic/Import: Domestic
- End Style: Solvent Weld
