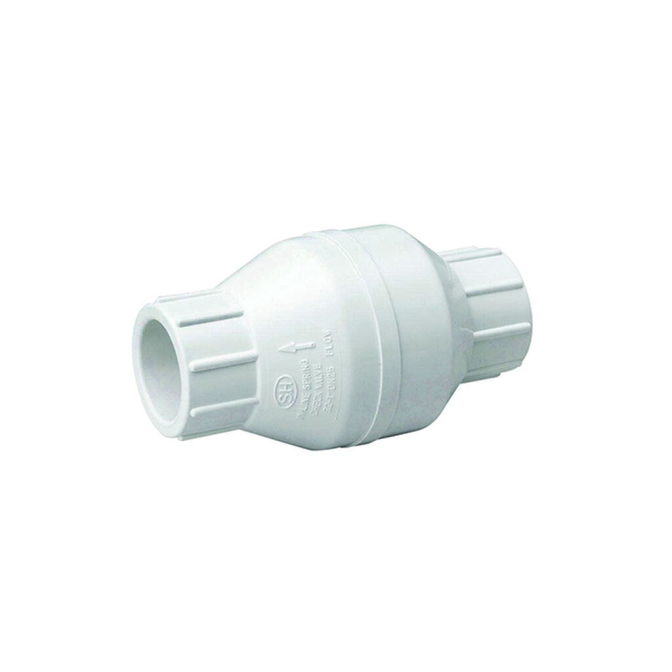

1" PVC In-Line Spring Check Valve, Solvent Weld
$9.41
1 inch PVC In-Line Spring Check Valve Solvent Weld
More Information | Material | EPDM Seal |
|---|
Description
Details
LEGEND 1 inch nominal Size, Solvent, 150 PSI, 140 degree Fahrenheit, 5-1/4 inch inlet to Outlet Length, PVC Body, EPDM Seal, 2.88 inch WFeatures
Features
- Designed for schedule 40 PVC pipe, but will accept schedule 80
- Naturally lead free
- The Cv factor is the gallons of water per minute passed through the valve with a 1 psi pressure drop
- Poppet design allows linear flow with minimal pressure drop
- Soft-seated, fully-guided poppet offers silent operation
- May be installed vertically or horizontally
- 1/2 lb positive pressure
- Not suitable for compressed air service
- Manufactured using 100% virgin resin
- Not recommended for steam service
- 150 psi CWP at 73 deg F non-shock
- Inlet to Outlet Length: 5-1/4 in
- Nominal Size: 1 in
- Pressure Rating: 150 psi
- Temperature Rating: 140 deg F
- Body Material: PVC
- Dimensions: 2.88 in W
- Domestic/Import: Domestic
