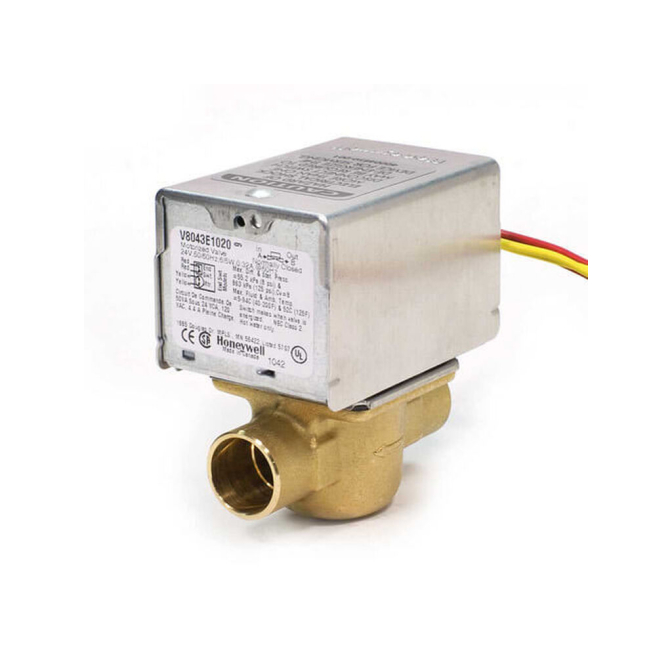

Honeywell Zone Valve, 2-Way Low Voltage, Series: V8043, 1 inch Nominal Size, C, 125 psi, 3.5 Cv, 24 VAC, 0.32 A, 50 to 200 degree Fahrenheit Water Temperature, 20 psi Differential, 18 inch Lead, Brass, 4 inch height x 3-11/16 inch Width x 2-3/8 inch D
Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.
Features
Features
Nominal Size: 1 in
Type: 2-Way Low Voltage
Voltage: 24 VAC
Warranty: Limited
Water Temperature: 50 to 200 deg F
Coefficient of Volume: 3.5 Cv
Differential: 20 psi
Dimensions: 4 in H x 3-11/16 in W x 2-3/8 in D
Electrical Connection: 18 in Lead
Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored
All models may be installed without disassembling the valve
Compact construction for easy installation
Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system
Actuator motor may be replaced without removing the valve body or draining the system
