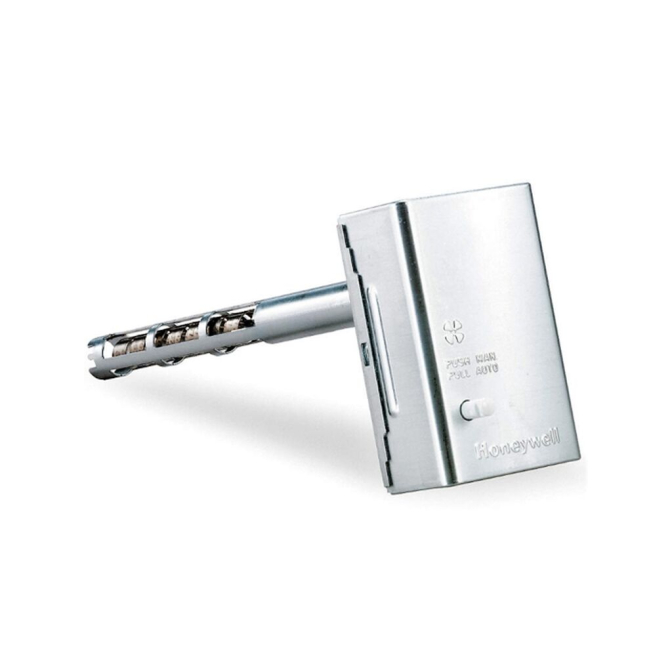

11-1/2" Insertion Fan and Limit Controller with 125 F fan on/100 F fan off, 200 F high limit
$169.07
In stock
SKU
1676
Fan and Limit Controller 11 inch Insertion
More Information
Diameter
1-1/4" x 1"
Description
Details
Honeywell Fan and Limit Controller, Series: L4064, -40 to 190 degree Fahrenheit, Inductive: 14 A, Resistive: 84 A, Pilot Duty: 0.25 A, 11-1/2 inch Element, 25 degree Fahrenheit Differential, Surface/Universal Mount, 4-9/32 inch height x 3 inch Width x 1-19/32 inch D
Controls high limit and fan motors inch forced air heating systems.
Features
Features
Inductive Rating: 14 A
Pilot Duty Rating: 0.25 A
Resistive Rating: 84 A
Temperature Rating: -40 to 190 deg F
Differential: 25 deg F
Dimensions: 4-9/32 in H x 3 in W x 1-19/32 in D
Domestic/Import: Import
Element: 11-1/2 in
Push-in receptacles for stripped wire
Female receptacles for 1/4 in male flag connectors
Auxiliary screw terminals
Field adjustable fan and high limit settings
L4064-B/W and R models have a manual fan switch that overrides the fan control to keep the fan running continuously
TRADELINE® models with mounting adapters for easy installation and strain relief bushings to protect wiring from field abuse
14 A at 120 VAC/7 A at 240 VAC fan, 8 A at 120 VAC/4 A at 240 VAC limit, 0.25 A at 0.25 to 12 VDC/2 A at 24 VAC, 84 A at 120 VAC/42 A at 240 VAC fan, 48 A at 120 VAC/24 A at 240 VAC limit
