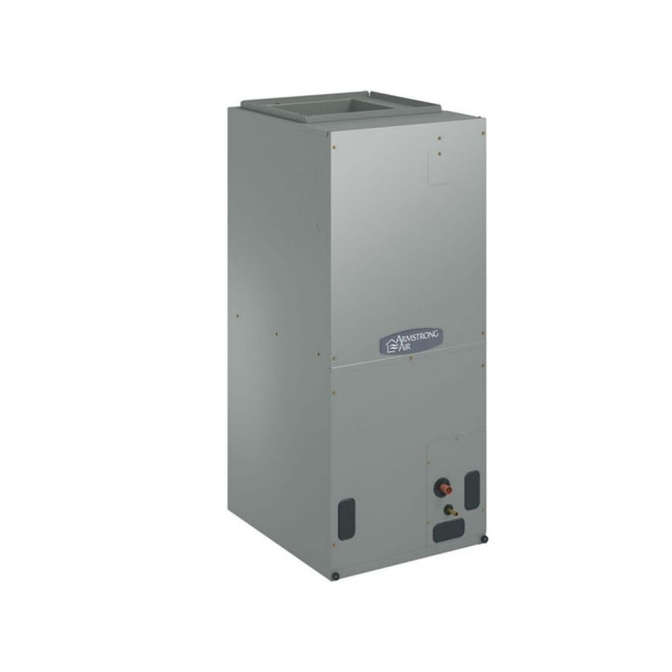

2.0 Ton Air Handling Unit, 30,000 BTU, 208 to 230 V, 1 PH
$951.43
In stock
SKU
2002510
BCE5E24MA4X 5 Series Multi-Position Air Handler, 2 Ton Nominal, 208 To 230 VAC, 1 Ph, 60 Hz 2002510
Description
Details
Designed to help provide energy savings and increase efficiency, the BCE5E's constant torque motor provides a steady flow of air, maintaining a more consistent airflow than a single-speed PSC motor. The unit works most effectively when paired with a matched Armstrong Air heat pump or air conditioner, saving you money every month, and it may qualify for local utility rebates. Armstrong Air Air Handler, Multi-Position, Series: 5 Series, 2 ton Nominal, 32700 Btu/hr Heating, 1160 cfm Flow Rate, 208/230 VAC, 1 ph, 60 Hz Power Source, 3/8 in Liquid Line, 3/4 in Suction Line, 16-1/2 in W x 14-1/2 in H Supply Air Opening, 16-1/4 in W x 20-3/8 in D Return Air Opening, 15 x 20 in Filter, Constant Torque Control, R-410A TXV Refrigerant, Constant Torque Motor, Galvanized Steel, 18-1/2 in W x 22 in D x 45-1/2 in H Dimensions
Features
Constant torque motor - Like a variable speed air handlers, constant torque air handlers provide lower operating costs and increase overall system efficiency and compared to standard PSC motors, constant torque delivers more consistent airflow and quieter operation
Highly consistent performance - Compared to single-speed motors, the constant-torque motor of the BCE3E unit delivers more consistent airflow and quieter operation, delivering daily energy savings, the BCE3E may qualify you for energy incentives
Anti-microbial protection - Drain pans are infused with an antibacterial agent that destabilizes the membrane of microorganism cells, disrupting the cellular function of odor-causing mold and bacteria so that they can no longer grow or reproduce
