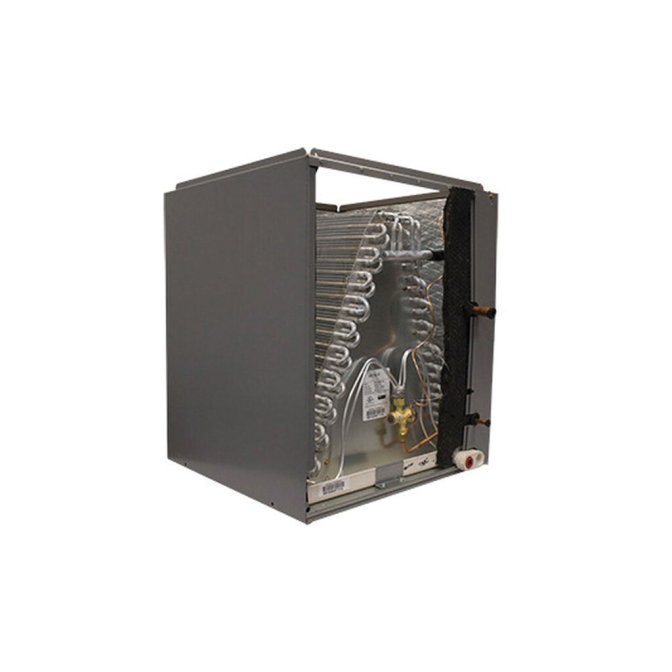

Armstrong Air Omniguard Evaporator Coil, Series: EAC4X-50, 2.5 ton Nominal Capacity, 600 to 1400 cfm, Upflow, R-410A, TXV Metering Device, 3/8 in Liquid Line, 3/4 in Suction Line, Aluminum Tube, Cased, 23-3/4 in L x 21-3/4 in W x 25-5/8 in H
Features
Omniguard™ total corrosion protection: Our enhanced evaporator coil helps protect against leaks and corrosion for long- term performance, A fully-insulated cabinet and pre-bent duct flanges with rolled edges allow for a tight fit to existing ductwork, preventing heating and cooling losses
Microban® protection - drain pans are infused with an antibacterial agent that destabilizes the membrane of microorganism cells, disrupting the cellular function of odor-causing mold and bacteria so that they can no longer grow or reproduce
Matched system: Our evaporator coils are specially designed and sized to match Armstrong Air® heating and cooling products, removable cabinets and a single drain pan offer quick access and easy clean up for lifelong performance efficiencies, plus, when you add a matching coil, you get a system that runs at peak performance while maximizing efficiency
MHT™ technology - Armstrong Air® proprietary heat transfer system, the coil features rifled tubing to enhance refrigerant flow, while lanced coil fins increase surface contact between metal and air, they combine for maximum heat transfer and efficiency
Fully insulated cabinet - wall-to-wall insulation ensures less than 2% air leakage increasing efficiency and energy savings
Factory-installed TXV: Optimized to deliver the right amount of refrigerant providing high-efficiency and energy savings every day
Single protruding right side dual drain port for easy installation and service access
R410A A/C or HP TXV expansion device with check valve
