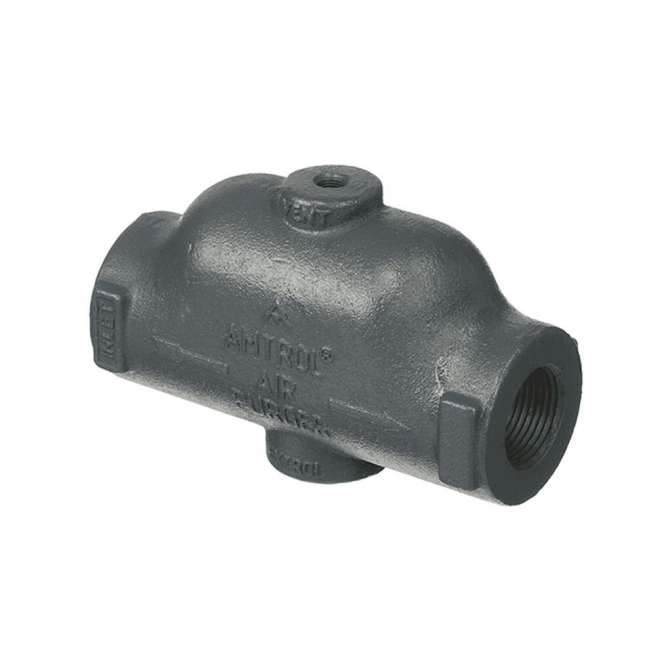

Amtrol Air Scoop (Purger) for use with 700 Series Automatic Air Vents and Extrol Expansion Tanks, 125 psi, Cast Iron, 8 inch length x 3-1/2 inch Width x 5 inch H
Features
Features
Warranty: 1 Year
Dimensions: 8 in L x 3-1/2 in W x 5 in H
Specifications: 125 psi
Suitable For Use With: 700 Series Automatic Air Vents and Extrol Expansion Tanks
The water that is used initially to fill a hot water heating system contains dissolved air
Make-up water subsequent added will similarly have a high air content
Heating this water releases the air and permits it to be circulated in the system, for which it must be vented
The purpose of the air purges is to continuously separate and collect any air from the water as it circulates so that it may be vented automatically by afloat air vent without the necessity for frequent manual venting
System connection sets the point of no pressure change
