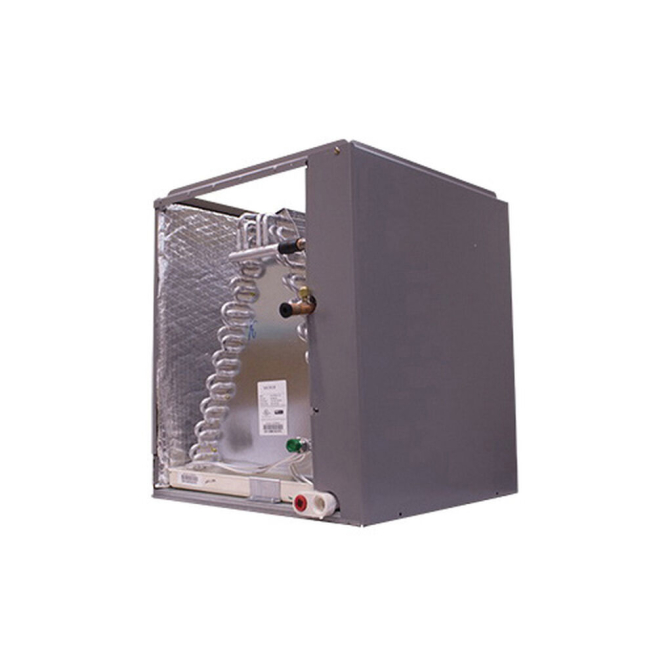

Armstrong Air Omniguard Evaporator Coil, Series: EAC1P-50, 2 ton Nominal Capacity, 400 to 1200 cfm, Upflow, R-22/R-410A, Piston Expansion Metering Device, 3/8 in Liquid Line, 3/4 in Suction Line, Aluminum Tube, Cased, 23-3/4 in L x 18-3/4 in W x 21-5/8 in H
Features
Omniguard Total Corrosion Protection - advanced evaporator coil helps protect against leaks and corrosion for long term performance
Microban antimicrobial additive in the drain pan to resist mold and mildew growth
Aluminum tubing, hairpins, distributors and header tubes. Copper refrigerant connections for easy brazing to both liquid and suction lines
Preformed flanges in outlet for quick and easy plenum connections
One of the lowest water retention drain pans in the industry to minimize mold and mildew growth
Interlocking door assemblies and snug line seal grommets to minimize air leakage
Tubing location at door split for easy coil service or cleaning
All drain pans are compatible with UV lights
Dedicated upflow
External cabinet mounted distributor body designed for easy changing of orifice sizes and fast TXV connections
