3/4 inch Adjustable Thermostatic Mixing Valve Lead-Free
More Information
Diameter
3" x 1-1/2"
Description
Details

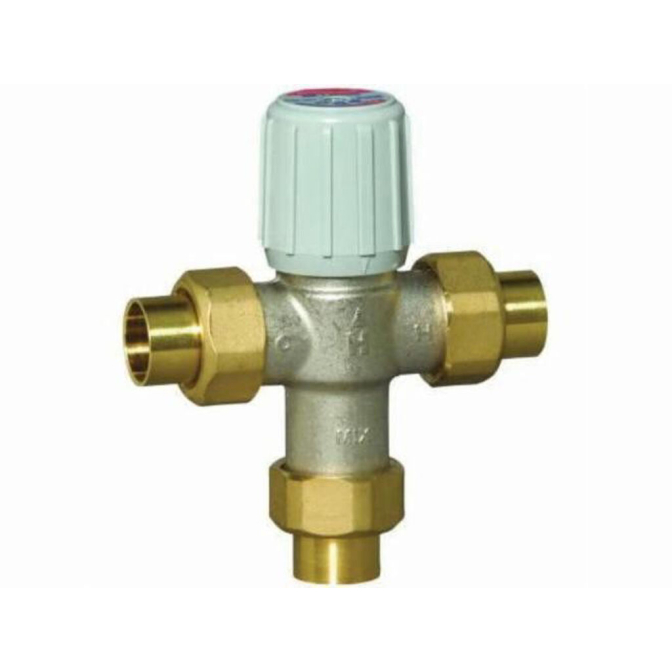

Honeywell Thermostatic Mixing Valve, Adjustable Lead Free, Series: AM-1, 3/4 inch Nominal Size, Union C, 150 psi, 70 to 145 degree Fahrenheit, 0.5 gpm, Mediameter: Water, 4.9 inch inlet to Outlet Length, Brass Body, EPDM O-Ring, Nickel Plated
Honeywell AM-1 series adjusts, maintains and limits the hot water temperature settings to provide comfort and protect equipment at home. While increasing the amount of safe, usable hot water, it efficiently offers anti-scald, anti-chill protection.
Features
Features
Inlet to Outlet Length: 4.9 in
Media: Water
Nominal Size: 3/4 in
Softgoods Material: EPDM O-Ring
Body Material: Brass
Type: Adjustable Lead Free
Warranty: 1 Year Limited
Domestic/Import: Domestic
Features dual purpose mixing or diverting values
Teflon coated, nickel plated low lead brass body
Teflon coated low lead brass shuttle
Offers constant water temperature under changing operating conditions
Temperature is limited at any point and if cold water supply is interrupted, flow reduction occurs in seconds
Provides reliable performance at minimum flow of 05 gpm and proportional valve for simultaneous control of hot and cold
Maximum pressure 150 psi and maximum temperature of 212 deg F (100 deg C)
Tamper resistant design with nickel plated brass construction and EPDM o-rings
Designed for easy maintenance and Teflon coating prevents mineral build-up and extends life
The wettable surfaces of lead free models contain less than 0.25% of lead by weighted average
