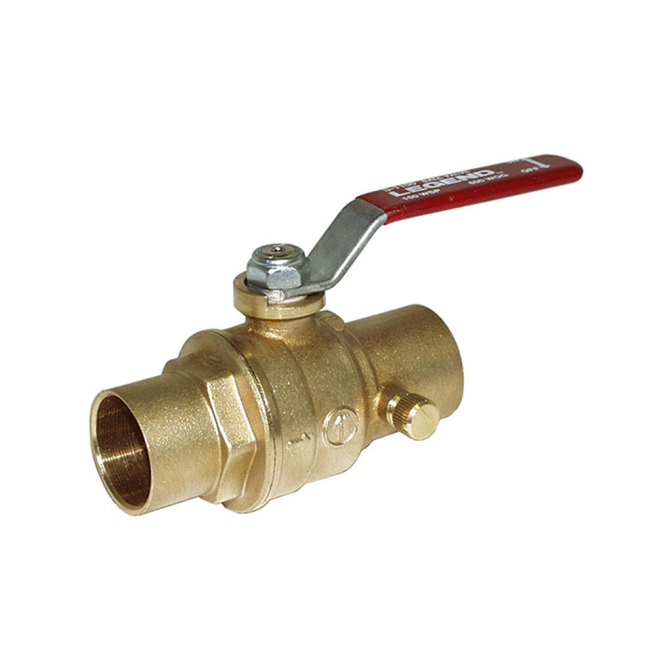

3/4" Brass Ball Valve, Full Port, Lead-Free, with Drain, Copper x Copper
$31.33
In stock
SKU
1948493
3/4 inch Brass Ball Valve Full Port Lead-Free with Drain Copper x Copper
Description
Details
3/4 inch nominal Size, Sweat, 500 PSI CWP, Full Port, 0.79 inch Orifice, Handle Actuator, Chrome Plated Forged Brass Ball, 3.15 inch inlet to Outlet Length, 1.87 inch Top to inlet Center, Forged Brass Body, Chrome Plated Forged Brass Trim, TFM PTFE Seat, Fluorocarbon O-Ring
Features
Features
Lead-free design is suitable for all no-lead potable water installations, in full compliance of all lead-free plumbing laws
The CV factor is the gallons of water per minute passed through the valve with a 1 psi pressure drop
Dyneon TFM is a registered trademark of the 3M company
Viton is a registered trademark of DuPont company
500 psi CWP non-shock
Durable lead-free forged brass body
Bottom-loaded blowout-proof stem
3M dyneon TFM PTFE seats
Dual o-ring stem seal
Waste drain allows line to be drained for maintenance or to prevent freeze-up
A more durable alternative to conventional stop and waste valves
Not suitable for steam service
Third-party tested and certified in compliance with U.S. Federal Public Law 111-380 (National lead-free plumbing law)
