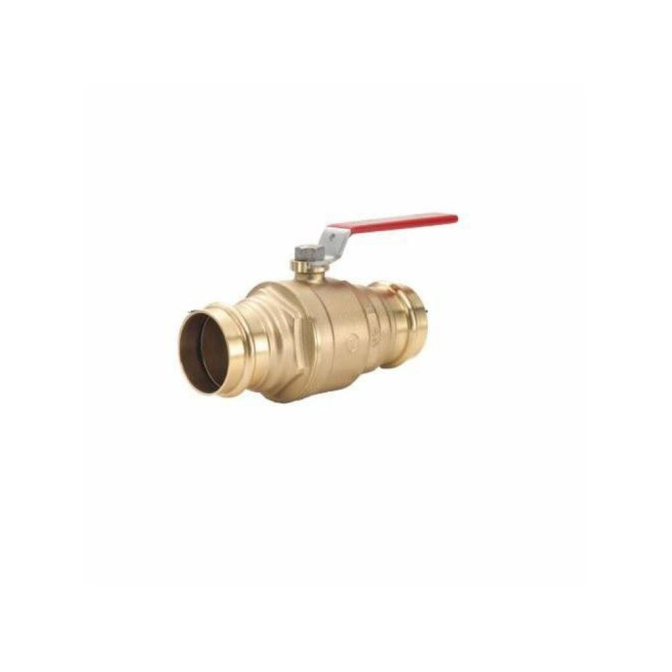

3/4 inch nominal, Press, 600 PSI Pressure Rating, 230 degree Fahrenheit Temperature, Full Port, Media: Water, Lever Handle Actuator, Brass Ball, 4.51 inch inlet to Outlet Length, 1.9 inch Top to inlet Center, Softgoods Material: TFM PTFE Thrust Seat/Thrust Washer, Chrome Plated, 2.68 inch H x 6 inch W
Ball valve has the same proven viton o-ring stem design that eliminates the need for a packing gland and nut
Corrosion resistant Dacromet coated steel handle and oversized lever handle with per-drilled tag hole is ideal for commercial plumbing applications
Press sockets have greater depth for stabilizing the copper when pressing which assures a solid connection
O-rings for added assurance that a seal is made when pressed
Press-type end connections eliminate the need for soldering and brazing, reducing labor and material costs and eliminating the fire hazard associated with the process
Compatible with commercially-available VUS profile jaws
Strip gauge included, to verify a complete press
For all no lead potable water installations in full compliance of all lead free plumbing laws
