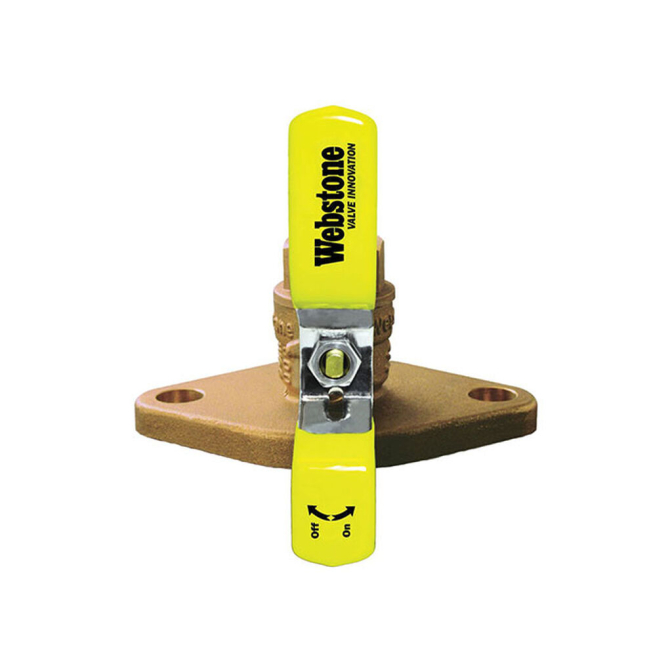

3/4, Brass Circulator Flange with Ball Valve, Less Drain, Female, Iron Pipe x Iron Pipe

Features

• Heavy duty forged brass construction
• Replaces 3 components, eliminates 2 leak paths saves 18 min of labor
• Unique uni-body design
• Blowout proof stem
• Conical inlet to minimize turbulence
• Available slotted holes for high velocity pumps
• The Isolator uni-flange ball valve
• Full port forged brass ball valve
• With adjustable packing gland, nuts and bolts

• Inlet to Outlet Length: 2-3/8 in
• Nominal Size: 3/4 in
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Series: 4040
• Material: PTFE Seat/Stem Seal
• Temperature Rating: 100 deg F
• Top to Inlet Center: 2-1/16 in
• Warranty: Lifetime
• Domestic/Import: Import
• End Style: IPS x Flange
