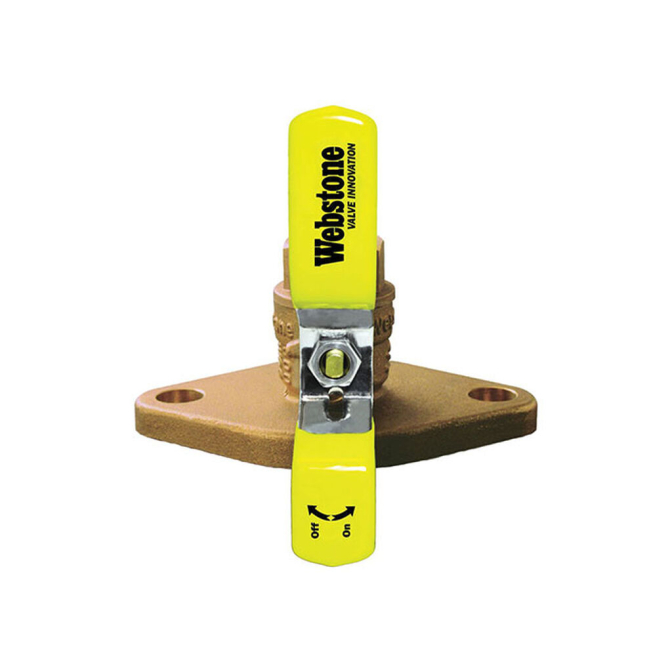

3/4, Brass Circulator Flange with Ball Valve, Less Drain, Sweat

Features

• Full port forged brass ball valve with adjustable packing gland, nuts and bolts
• These valves have revolutionized the installation of circulator pumps
• Our original Isolator uni-flange ball valve design has evolved into the largest flanged ball valve program in the industry today
• Heavy duty forged brass construction
• Unique uni-body design is preserved
• Blow-out-proof stem design
• Conical inlet to minimize turbulence
• Available slotted holes for high velocity pumps
• Guaranteed for life

• Inlet to Outlet Length: 2-9/16 in
• Nominal Size: 3/4 in
• Port Type: Full
• Pressure Rating: 600 psig WOG
• Series: 5040
• Material: PTFE Seat/Stem Seal
• Temperature Rating: 100 deg F
• Top to Inlet Center: 2-1/16 in
• Warranty: Lifetime
• Domestic/Import: Import
• End Style: C x Flange
