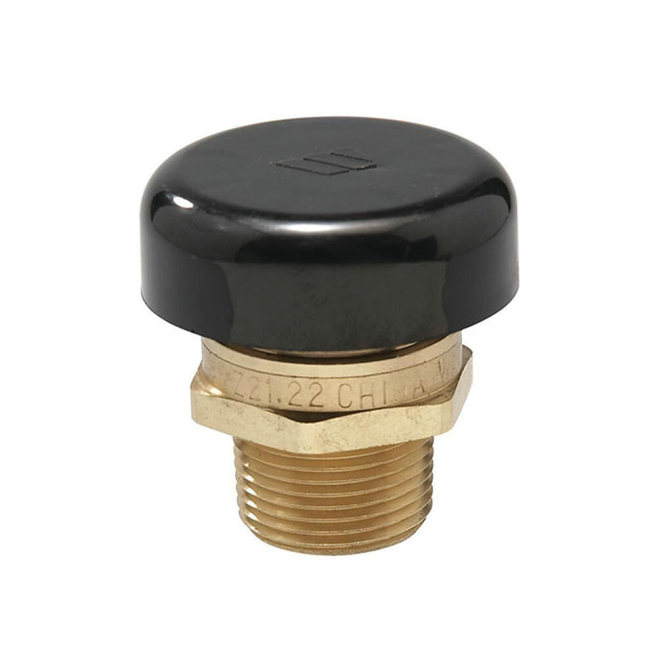

3/4" Brass Vacuum Relief Valve, Lead-Free, Male x Female
$90.11
3/4 inch Brass Vacuum Relief Valve Lead-Free Male x Female
More Information | Diameter | 1/4"ID (3/8" |
|---|
Description
Details
3/4 inch nominal Size, MNPT, 15 psi, 250 degree Fahrenheit, 15 cfm, Brass Body, Buna-N O-Ring/Silicon Disc, 2 inch Height x 2 inch WeightFeatures
Features
- Lead free
- Low profile
- Protective cap
- Suitable for low pressure steam and water service
- Jacketed steam kettles, table top heaters, unit heaters, low pressure steam systems, steam coil heaters, domestic water heaters and supply tanks
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Nominal Size: 3/4 in
- Pressure Rating: 15 psi
- Series: LFN36
- Material: Buna-NO-Ring/SiliconDisc
- Temperature Rating: 250 deg F
- Dimensions: 2 in H x 2 in W
- End Style: MNPT
- Flow Rate: 15 cfm
