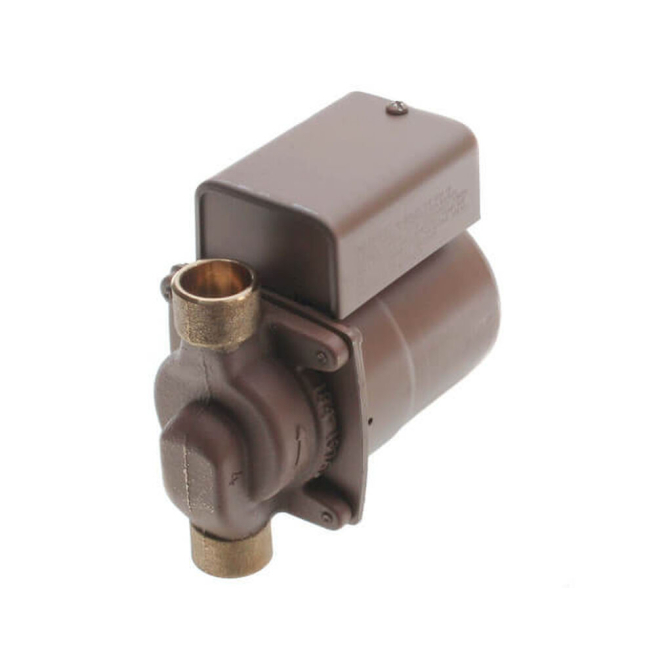

Taco Cartridge Circulator Pump, Single Phase, Series 006, 0 to 11 gpm, 3/4 inch Sweat inlet, 9-1/2 feet Maximum Head, 1/40 hp, 115 VAC, 0.52 A, 60 Hz, 125 psi Maximum, 3250 rpm Motor, 6 feet Line Cord, 40 to 220 degree Fahrenheit, 5-1/8 inch length x 3-15/16 inch Width
The compact Taco 006 Cartridge Circulator is designed for circulating hot and chilled fresh water inch a wide range of open and closed loop applications. Its unique, field-serviceable cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. with no mechanical seal, the self-lubricating, maintenance free design provides quiet, efficient operation and unmatched reliability. Available inch Low-Lead Bronze, sweat or Stainless Steel, threaded or union connections.
Features
Features
Frequency Rating: 60 Hz
Inlet Size: 3/4 in Sweat
Maximum Head: 9-1/2 ft
Maximum Pressure: 125 psi
Motor Speed: 3250 rpm
Power Rating: 1/40 hp
Type: Single Phase
Voltage Rating: 115 VAC
Cord Type: 6 ft Line
Dimensions: 5-1/8 in L x 3-15/16 in W
Standard high capacity output compact design
Quiet, efficient operation
Direct drive - low power consumption
Unique replaceable cartridge design - field serviceable
