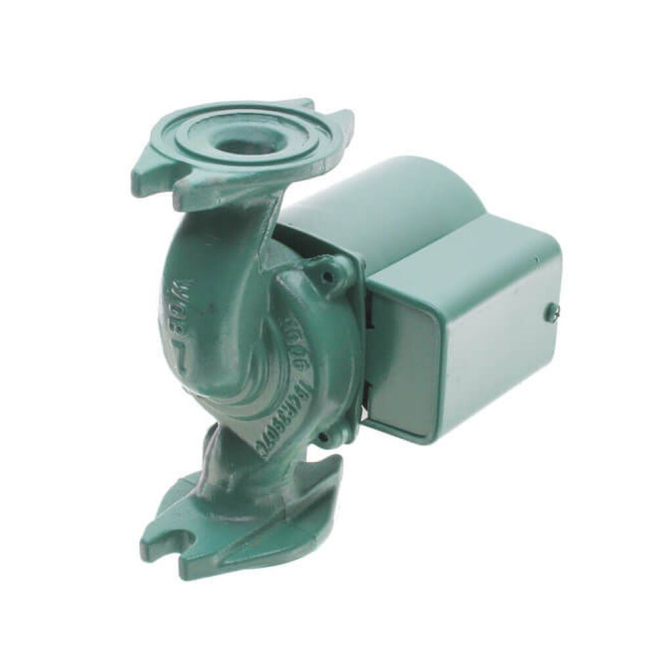

3/4" Cartridge Circulator Pump, 0 to 17 gpm, 115 VAC
$158.13
In stock
SKU
558543
3/4 inch Cartridge Circulator Pump 0 to 17 gpm 115 VAC
Description
Details
Taco IFC Cartridge Circulator Pump, Series 007-IFC, 0 to 17 gpm, 3/4 inch, 1 inch, 1-1/4 inch, 1-1/2 inch Flanged inlet, 8-1/2 feet Maximum Head, 1/25 hp, 115 VAC, 0.71 A, 60 Hz, 125 psi Maximum, 3250 rpm Motor, 40 to 230 degree Fahrenheit, 6-1/8 inch length x 6-3/8 inch H
The Taco 007 Cartridge Circulator is the most popular hydronic circulator sold today. with its field serviceable cartridge design, the compact 007 provides quiet, efficient operation and unmatched reliability. The self-lubricating, maintenance free design and flow characteristics make it the ideal hydronic circulator for a wide range of applications.
Features
Features
Frequency Rating: 60 Hz
Includes: Integral Flow Check
Inlet Size: 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Flanged
Maximum Head: 8-1/2 ft
Maximum Pressure: 125 psi
Motor Speed: 3250 rpm
Power Rating: 1/25 hp
Voltage Rating: 115 VAC
Warranty: 1 Year
Dimensions: 6-1/8 in L x 6-3/8 in H
Standard high capacity output compact design
Cast iron casing
Steel stator housing
Stainless Steel cartridge and spring
Non metallic impeller
Ceramic shaft
Carbon bearing
EPDM o-ring and gasket
Acetal body and plunger
The Taco 007 is a cartridge style, maintenance free, wet-rotor, in-line, single stage circulator pump
It is designed for quiet operation in hydronic heating, radiant heating, hydro-air fan coils, indirect water heaters, chilled fresh water, and domestic water recirculation systems
Quiet, efficient operation
The unique replaceable cartridge contains all of the moving parts and allows the circulator to be easily serviced instead of replacing the entire unit
