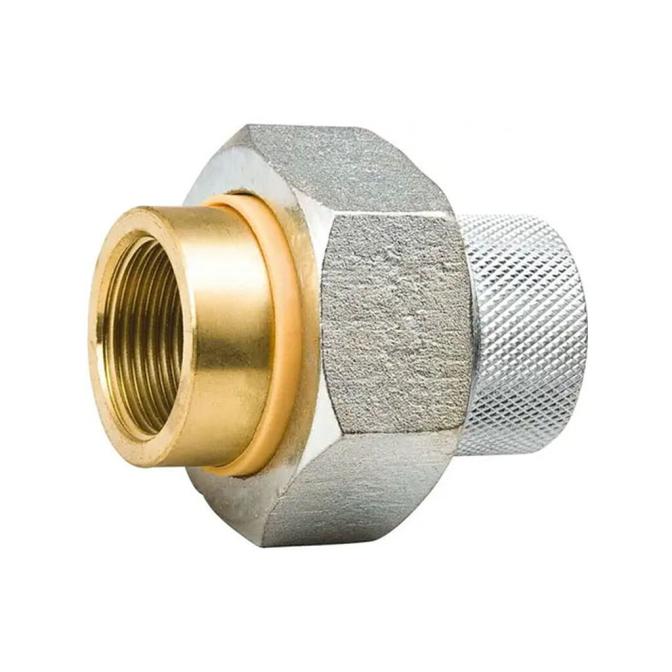

3/4"forged Steel Dielectric Union, Lead-Free, Copper x Female

Features

• All fittings are UL listed and FM approved for fire suppression
• Manufactured using the latest technologies for material consistency and dimensional tolerances
• Designed to reduce stray current and galvanic corrosion where two dissimilar metals are joined
• Classified as a Class 150 malleable iron fitting, (rated at 150 psi) they are test pressure rated by UL and factory Mutual at 300 and 500 psi, configuration-specific
• Forged carbon steel, galvanized body, forged carbon steel, galvanized union nut lead free forged brass solder adapters, EPDM rubber gasket, ABS resin insert insulator

• Length: 2.07 in
• Material: Forged Carbon Steel
• Nominal Size: 3/4 in
• Pressure Rating: 200 psi
• Series: T-571NL
• Temperature Rating: 180 deg F
• Warranty: 5/25 Years
• Dimensions: 1.63 in W
• Domestic/Import: Domestic
• End Style: FNPT x C
