3/4" x 100' Stainless Steel Gas Tubing, Corrugated
$472.77
In stock
SKU
1924424

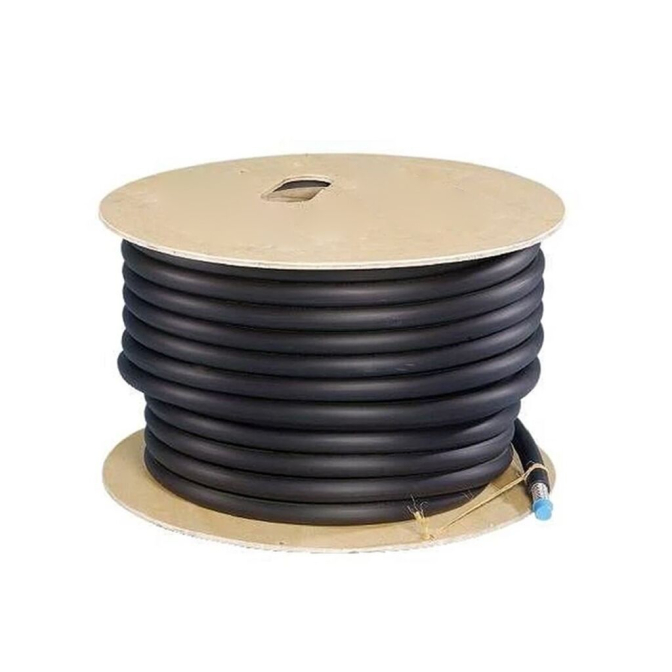

3/4 inch x 100 feet Flexible Gas Pipe Reel
Description
Details
3/4 inch x 100 feet Flexible Gas Pipe Reel. 3/4 inch Nominal Size, 0.82 in Inside diameter, 1.14 in Outside diameter, 100 feet Reel Length, 0.01 in Wall Thickness, 25 PSI Working, -20 to 200 degree Fahrenheit, Stainless Steel
Features
Features
Semi-rigid tubing
There are no additional bonding requirements for CounterStrike imposed by the manufacturer's installation instructions
Lays straighter and pulls easier, dramatically decreasing installation times (and saving you time and money in the process)
Unlike competitive brands, CounterStrike is non-annealed making it more crush resistant, and easier to cut
Superior lightning protection compared to bonded yellow CSST
CSA international evaluation report - 125 psig max operating pressure, 3/8 in through 1-1/4 in
Must be installed in accordance with the TracPipe design guide and installation instructions and all applicable codes
300 series corrugated stainless steel
Proprietary polymer jacket - energy dissipating properties
Black conductive, UV/Ozone resistant polyethylene with flame retardant jacket
ASTM E-84 compliant not to exceed 25 flame spread and 50 smoke density
2400 deg F tubing melting point
350 deg F jacket melting point
Conductive jacketed flexible gas piping for use in natural gas and liquefied petroleum (propane) gas applications, used with TracPipe autoflare fittings and accessories
CounterStrike has been shown to be up to 400 times more resistant to the damaging effects of electrical arcing energy than yellow CSST
Uses the new AutoSnap fittings that do not require disassembly/reassembly
