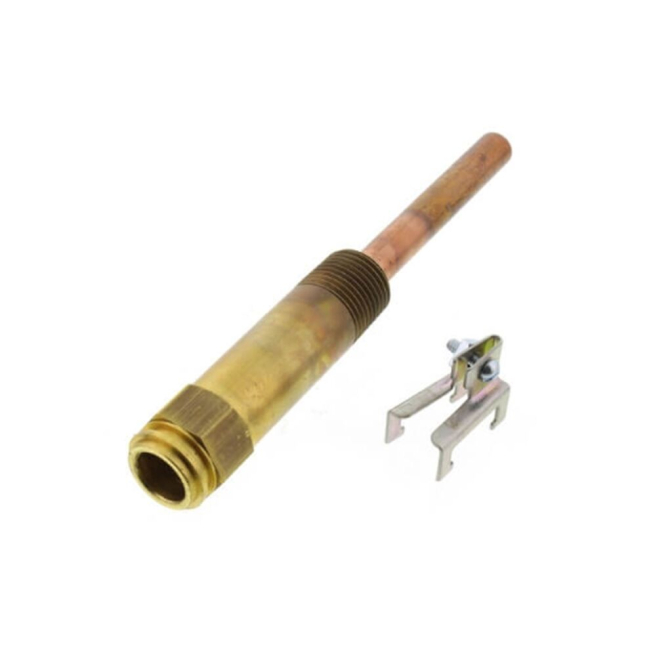

Honeywell Well Assembly for use with: Aquastat Temperature Controllers, 3/4-14 NPT Well Spud, Copper
Immersion wells, compression fittings and element holders are used with Aquastat Temperature Controllers to hold the temperature sensing bulb inch the controlled medium. Immersion wells and compression fittings also prevent leakage of the controlled medium.
Features
Features
Warranty: Limited
Includes: Mounting Clamp
Suitable For Use With: Aquastat® Temperature Controllers
Immersion wells and compression fittings are available to fit a 1/2-14 or 3/4-14 NPT tapping with a range of insulation depths
Compression fittings seal the boiler and allow bulb insertion directly into the controlled medium
3 in L insertion, 3/8 in shell, 1-1/2 in D insulation and 5/64 in dia capillary
3/4-14 NPT well spud
Immersion wells and compression fittings are available in a variety of lengths and dia
Immersion wells and compression fittings are available in a variety of materials, to suit the application
Materials include: brass, copper, stainless steel, mild steel or monel
Element holders support the capillary and bulb or an averaging element in duct applications
Bulb shields protect the sensing bulb from sun and weather with the bulb installed outdoors
Accessories, including mounting clips, heat conductive compounds, waste nuts, a pipe strap and a well adapter are available for mounting sensing bulbs in various applications
Immersion wells allow heat transfer while protecting the sensing bulb from contact with the controlled medium
Immersion wells permit removal of the sensing bulb for testing or replacement without draining the system
