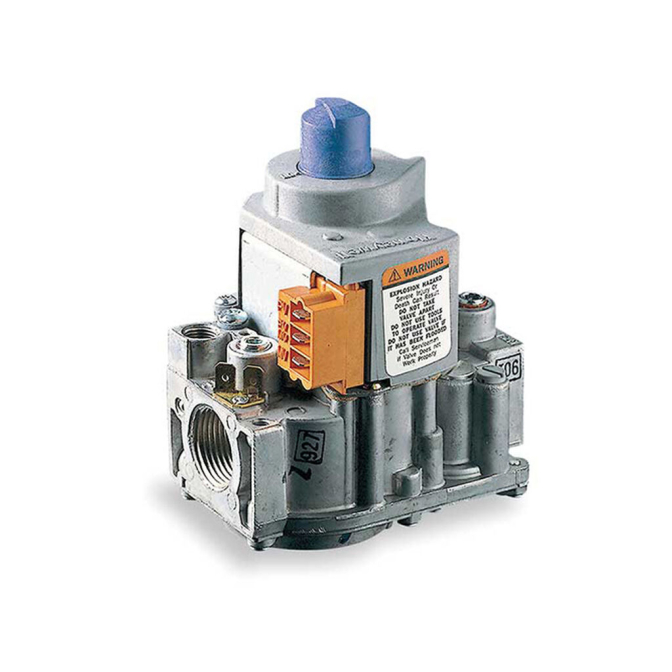

3/4" x 3" x 4" Standard Dual Direct Ignition/Intermittent Pilot Gas Valve
$181.65
In stock
SKU
28632
3/4 inch x 3 inch x 4 inch Standard Dual Direct Ignition/Intermittent Pilot Gas Valve
More Information
Diameter
1/2" x 3/8"
Description
Details
Honeywell Gas Valve, 1-Stage, Series: VR8345, 3/4 inch Nominal Size, 0.5 psi, Direct/Intermittent Pilot Ignition, 30000 to 415000 Btu/hr Nominal Capacity, Natural Gas, 24 VAC 50/60 Hz Coil, 1/4 inch Male Quick Connect Terminal, -40 to 175 degree Fahrenheit, 5-3/8 inch height x 4-1/16 inch Width x 2-11/16 inch D
Universal electronic ignition combination gas control for use with direct spark ignition, hot surface ignition or intermittent pilot ignition inch 24 VAC, gas-fired appliances with capacities from 20 to 200 cfh (VR8245M) or 30 to 415 cfh (VR8345M).
Features
Features
Nominal Capacity: 30000 to 415000 Btu/hr
Size: 3/4 in
Pressure Rating: 0.5 psi
Temperature Rating: -40 to 175 deg F
Warranty: Limited
Coil Voltage: 24 VAC 50/60 Hz
Dimensions: 5-3/8 in H x 4-1/16 in W x 2-11/16 in D
Domestic/Import: Import
Electrical Connection: 1/4 in Male Quick Connect Terminal
Controls include manual valve, two automatic operators, pressure regulator, pilot adjustment, pilot plug and ignition adapter
Straight-through body pattern
0 to 90 deg in any direction from the upright position of the gas control knob mounting
3-1/2 in WC pressure regulator setting
Standard opening gas vavle
Includes: (2) 3/4 x 1/2 in Reducer Bushings and Natural to LP Conversion Kit
Replaces many IP, HSI or DSI gas control
For use with natural or manufactured gas or LP gas
Includes converter kit to adapt from natural to LP gas
Compact design
All adjustments and wiring connections accessible from top of control
4 in swing radius allows easy rotation into position inside the tightest furnace vestibules
Clearly marked, keyed terminal block allows quick attachment of wires and IP/DSI/HSI jumper
Internal inlet screen blocks contaminants in gas line from entering valve
