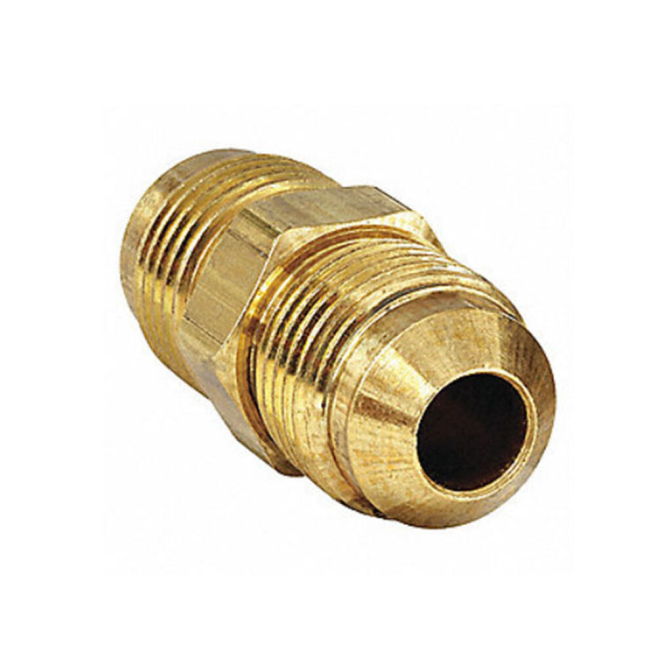

3/8" OD Brass Flared Union
$3.38
3/8 inch OD Brass Flared Union
More Information | Diameter | 1-1/2" x 1-1/4" |
|---|
Description
Details
3/8 inch Brass Flared Tube Union. Nominal Size, Flared, 58 inch Hex, 1.48 inch Length, -65 to 250 degree FahrenheitFeatures
Features
- Recommended for higher pressures than those covered by compression fittings
- Resist mechanical pull out
- Designed for use with aluminum, copper, brass and welded steel tubing that can be flared
- For use with fuel, oil, liquefied petroleum and natural gas lines
- Good vibration resistance
- 5/8-18 straight thread
- C36000 brass body
- Length: 1.48 in
- Material: Brass
- Nominal Size: 3/8 in
- Series: 42
- Temperature Rating: -65 to 250 deg F
- End Style: Flared
- Hex Size: 5/8 in
