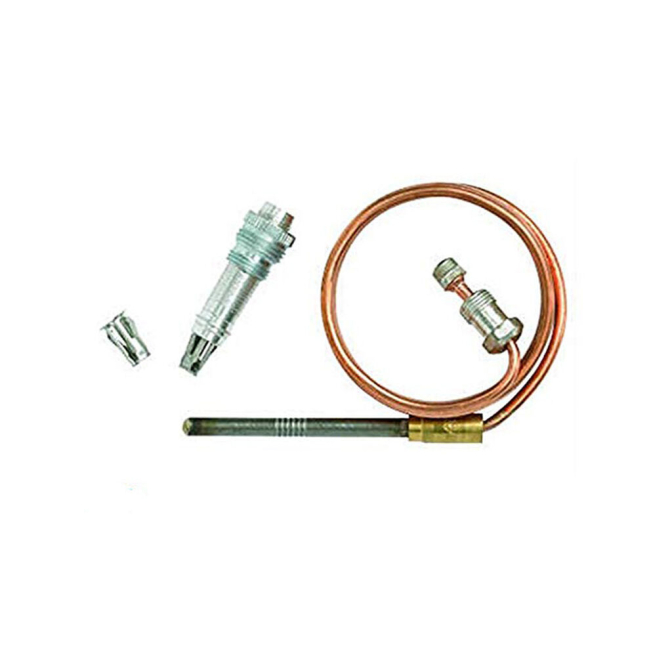

Honeywell Thermocouple, 30 inch Length, Male Connector Nut, 30 mV, LP/Natural Gas
The Q340A thermocouples sense the pilot flame on standing pilot gas-fired heating systems. The pilot flame heats the tip of the thermocouple, producing a temperature differential between it and the base to generate 30 millivolts.
Features
Features
Domestic/Import: Import
Primary Voltage: 30 mV
Warranty: Limited
End Style: Male Connector Nut
Includes: Adapter, Push-In Clip
Length: 30 in
Push-in clip, split nut or adapter assembly available (depending on model) for easy pilot burner installation
Male nut connector for Pilotstat® safety control power units
26 to 32 mV open circuit output
760 deg C hot junction/416 deg C cold junction temperature
