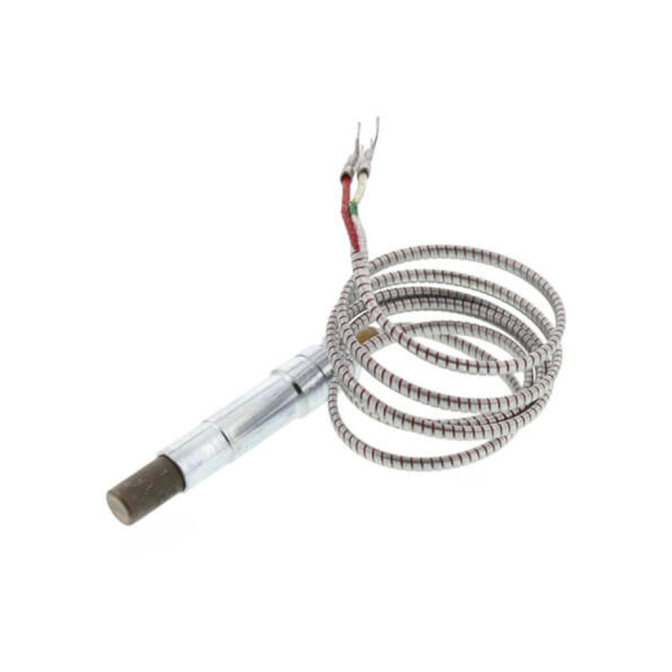

Honeywell Thermopile, 35 inch Length, Spade Terminal, 750 mV, LP/Natural Gas
Q313 Thermopile Generator contains multiple thermocouples connected inch series to provide 750mV. The power generated is sufficient to operate an automatic millivolt gas control system, independent of any outside power source.
Features
Features
Domestic/Import: Import
Primary Voltage: 750 mV
Warranty: Limited
End Style: Spade Terminal
Includes: PG9 Adapter, Attaching Nut
Length: 35 in
Push-in clip, split nut or adapter assembly available (depending on model) for easy pilot burner installation
Spade or quick connect terminals available for millivoltage gas control connections
600 to 750 mV open circuit output
760 deg C hot junction/416 deg C cold junction temperature
