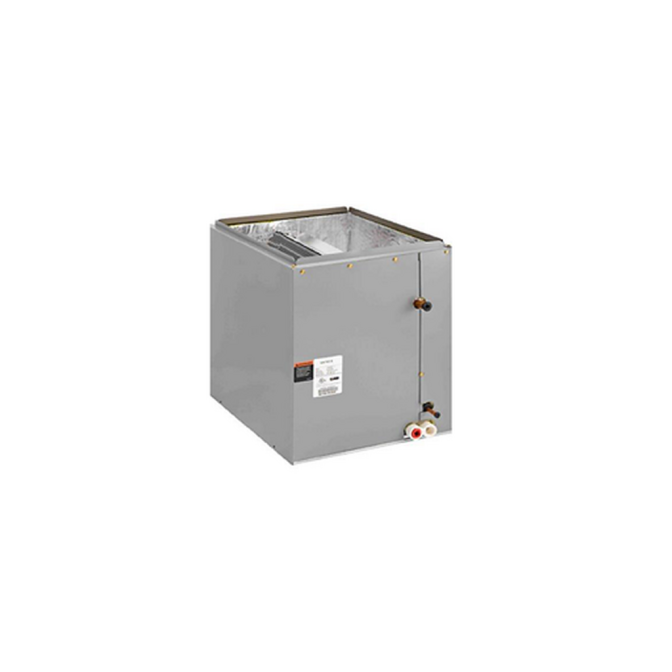

Armstrong Air Omniguard Evaporator Coil, Series: EAC4X-50, 4 ton Nominal Capacity, 1200 to 2000 cfm, Upflow, R-410A, TXV Metering Device, 3/8 in Liquid Line, 7/8 in Suction Line, Aluminum Tube, Cased, 24.25 in L x 25.25 in W x 32.62 in H
Features
Omniguard Total Corrosion Protection - advanced evaporator coil helps protect against leaks and corrosion for long term performance
Microban antimicrobial additive in the drain pan to resist mold and mildew growth
Aluminum tubing, hairpins, distributors and header tubes. Copper refrigerant connections for easy brazing to both liquid and suction lines
Preformed flanges in outlet for quick and easy plenum connections
One of the lowest water retention drain pans in the industry to minimize mold and mildew growth
Interlocking door assemblies and snug line seal grommets to minimize air leakage
Tubing location at door split for easy coil service or cleaning
All drain pans are compatible with UV lights
Dedicated upflow
Tightly sealed, painted steel cabinet with wall to wall insulation to ensure <2% air leakage
