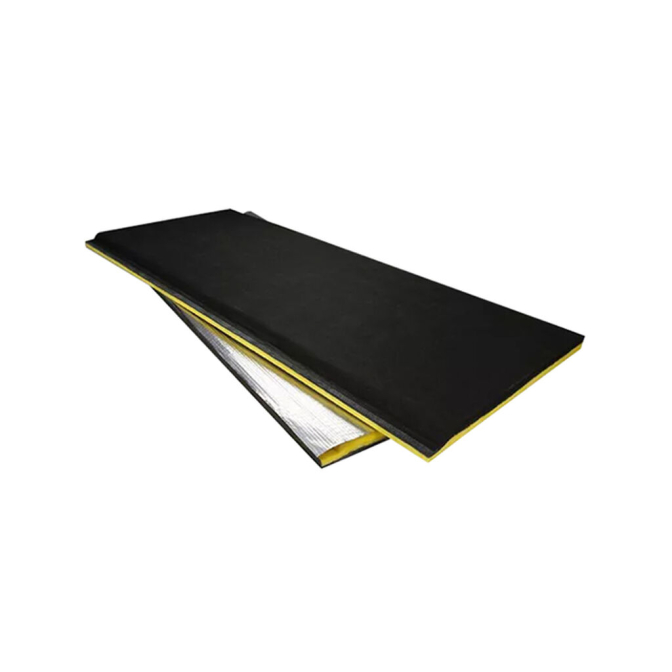

4' x 10' x 1" Air Duct Board with ECOSE Technology
$52.88
In stock
SKU
174505
4 feet x 10 feet x 1 inch Air Duct Board with ECOSE Technology
Description
Details
Knauf Insulation Eclipse Air Duct Board, Series: EI-475, 120 inch Length, 48 inch width for use with: Cooling/Heating or Dual-Temperature Service
Knauf Insulation Eclipse Air Duct Board with ECOSE Technology is a rigid fiber glass board faced on one side with a foil-scrim-kraft (FSK) vapor retarder and with a lightweight black fiber glass mat on the airstream surface. It is used to fabricate rectangular or Max10 air duct systems. It comes with two stiffness ratings, EI-475 and EI-800. Both types are available with butt edge or factory molded male-female shiplap edges. The airstream surface of Knauf Insulation Eclipse Air Duct Board is treated with an EPA registered, anti-microbial agent that prevents growth of mold, fungus or bacteria inch accordance with UL 181.
Features
Features
1 in Thk
Shiplap edge
4.3 R-value
0.649 load factor 53 ft TL
154 Cartons/53 ft TL
240 sq-ft/pallet
Knauf insulation eclipse air duct board with ecose technology is designed for commercial and residential air handling installations for cooling, heating or dual-temperature service where good temperature control and noise absorption are required
