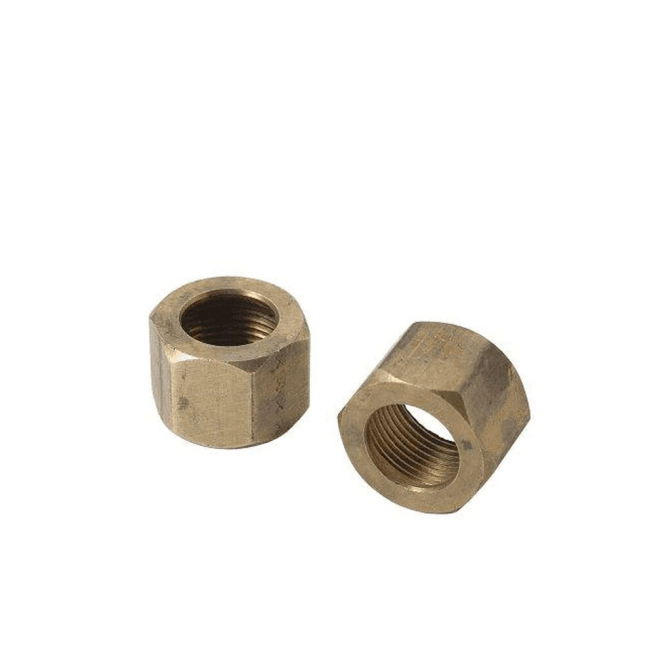

5/8" OD Brass Compression Nut, Lead-Free
$2.39
5/8 inch OD Brass Compression Nut Lead-Free
More Information | Diameter | 1/2" x 1/8" |
|---|
Description
Details
5/8 inch Brass Tube Nut. Nominal Size, Compression, 0.035 in Thickness, 15/16 in Hex, 0.56 in Length, 150 psi, -65 to 250 degree FahrenheitFeatures
Features
- Do not require any flaring, soldering or other type of tubing preparation
- Available in a broad range of sizes and styles
- Manufactured from low lead compliant brass
- For use with potable water, many different types of instrumentation applications, hydraulic and pneumatic systems
- Designed to be used with aluminum, copper and plastic tubing, not for use with steel tubing
- Warning do not use compression fittings for gas connections of any kind
- Plastic tubing requires 63PT insert and 60PT sleeve
- Fair vibration resistance
- Length: 0.56 in
- Material: Brass
- Nominal Size: 5/8 in
- Pressure Rating: 150 psi
- Series: 61
- Temperature Rating: -65 to 250 deg F
- Thickness: 0.035 in
- Dimensions: 0.632 in ID
- Domestic/Import: Domestic
- End Style: Compression
- Hex Size: 15/16 in
