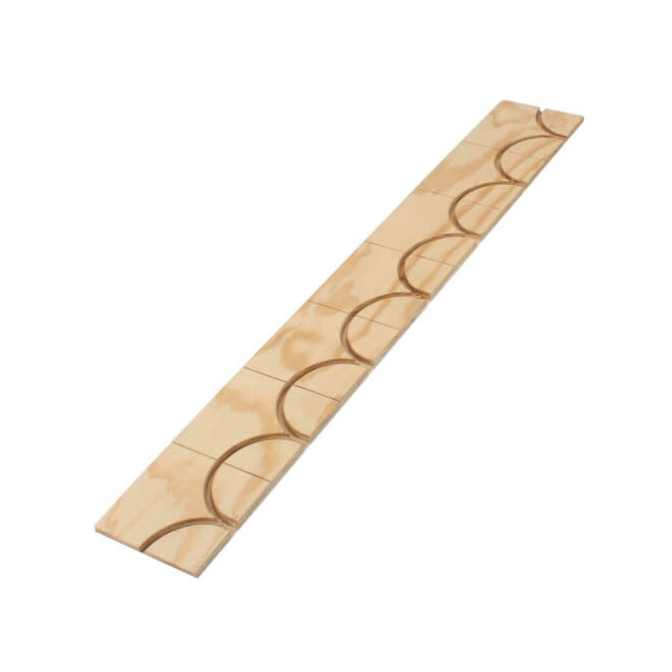

7" x 48" Hydronic Return Panel (Limited Quantities Available - Item is on Backorder)

Features

• Warranty: Limited
• Width: 6.72 in
• Length: 47.66 in
• Specifications: 1/2 in Thk
• Suitable For Use With: 5/16 in Wirsbo hePEX™ Plus Tubing
  • Place Quik trak panels on floor surface, ensuring the seams are staggered
  • Secure one side of the panel with a screw on each end to allow for quick realignment of panels
  • After properly placing the panels, secure each one with ten screws (five on each side of the groove)
  • Clean any debris from the panel grooves
  • Apply a thin (1/8 in) bead of 100 percentage silicone Quik Trak sealant (E6050010) throughout the entire length of the groove
  • The silicone acts as an adhesive agent, promoting good heat transfer from the tubing to the panel
  • Aluminum backing material
