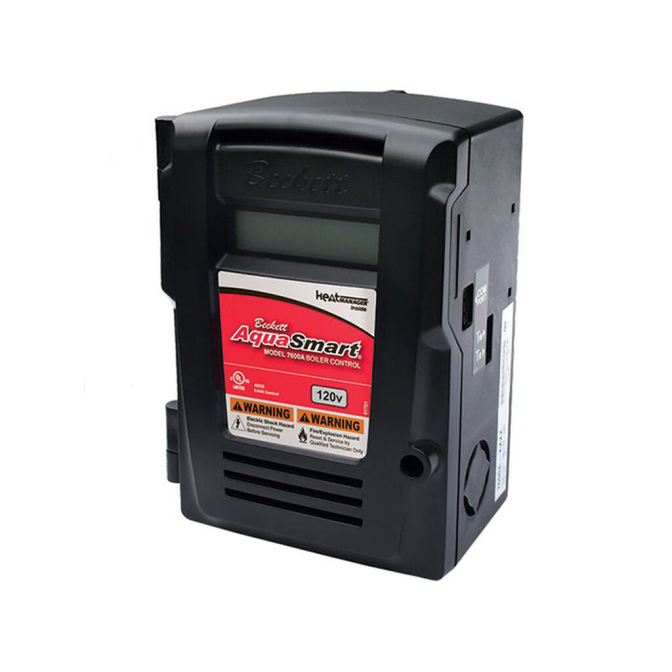

AquaSmart Boiler Temperature Control, Oil with Temperature, 120V
$251.65
In stock
SKU
1929961
AquaSmart Boiler Temperature Control Oil with Temperature 120V
More Information
Diameter
3/8" x 1/2"
Description
Details
Beckett AquaSmart Boiler Temperature Control, Series: 7600, 2N1, -4 to 150 degree F Control Range, 20 A Full Load, 44.4 A Locked Rotor
Introducing the new universal boiler control, designed and engineered by Beckett. The Beckett AquaSmart is a universal boiler control designed for use on residential and light commercial boiler systems. All models include the option of Beckett HeatManager dynamic temperature reset that, when selected, provides up to 20% fuel consumption savings. The control includes a backlit LCD digital display with touch pad to easily program temperature limits, differentials, and other advanced options. The AquaSmart also has memory storage of system history for help with diametergnostic troubleshooting.
Features
Features
Full Load Current: 20 A
Locked Rotor Amperage: 44.4 A
Sensor: 2N1
Control Range: -4 to 150 deg F
Domestic/Import: Domestic
Beckett HeatManager dynamic temperature reset
50/60 Hz frequency
0.1 A thermostat anticipator current
Circulator: 7.4 A at 120 VAC FLA
Line voltage model: 7.4 A at 120 VAC FLA
Low voltage model: 1.25 A at 24 VAC, 30 VA (total load)
Zone control (ZC) - 7.4 A at 120 VAC FLA
-40 to 176 deg F storage temperature
Relative humidity: 5% to 85% RH, non-condensing and non-crystallizing
