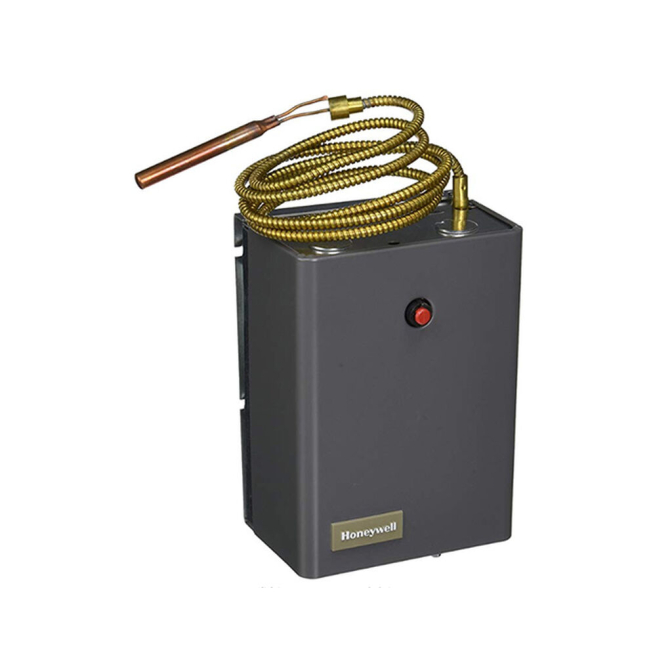

Aquastat Protector Relay and Heating Control with High limit, Low Limit/Circulator, Junction Box Mount
$1,160.57
In stock
SKU
1690
Protector Relay and Hydronic Heating Control with High limit Low Limit/Circulator Junction Box Mount
More Information
Diameter
3" x 4"
Description
Details
Honeywell Aquastat controller, 120 VAC, 130 to 240 degree Fahrenheit, 10 degree Fahrenheit Differential, Junction Box Mount, 1 1/2 inch Insulation Depth, 0 to 95% Humidity
Immersion type Aquastat controller and oil burner primary control provides high limit and low limit/circulator control for oil-fired hydronic heating systems.
Features
Features
Temperature Rating: 130 to 240 deg F
Primary Voltage: 120 VAC
Warranty: Limited
Differential: 10 deg F
Humidity Range: 0 to 95%
Includes: Auxiliary ZC and ZR Terminal
Insulation Depth: 1 1/2 in
Use in intermittent ignition applications
Capable of zone control with zone valves
Circulator zone control with ZC and ZR terminals on R8182-D/E/H/J
8 flame failures during the running cycle results in a 45 se attempt to restart
If unsuccessful, safety shutoff occurs, requiring manual reset before burner can be restarted
R8182-D/E/F mount directly on burner; R8182-H/J mount on 4 x 4 in junction box and include 5 ft (1.5 m) armored capillary with remote sensor
C554A cadmium sulfide flame detector and 24 VAC thermostat required
