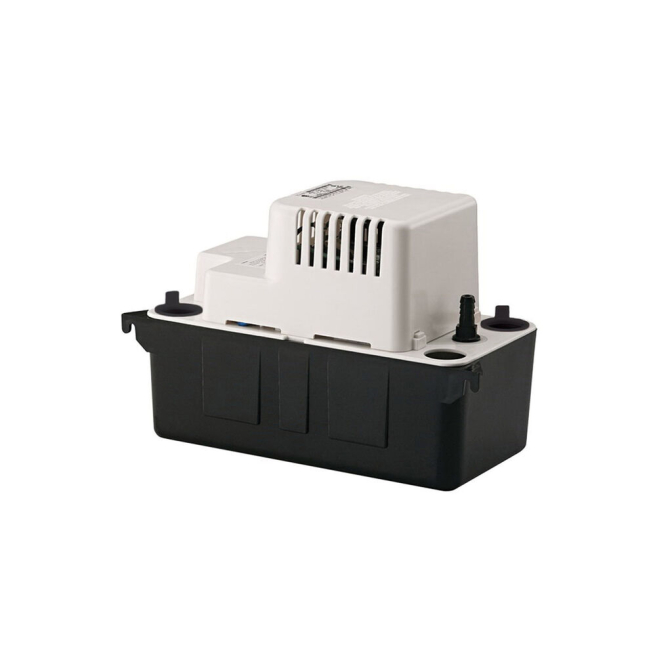

Automatic Condensate Removal Pump, 65 gph
$60.03
Automatic Condensate Removal Pump 65 gph
More Information | Material | ABS |
|---|
Description
Details
Little Giant Condensate Removal Pump, Automatic, Series: VCMA-15, 65 gph, 3/8 inch OD Barbed Outlet, 15 feet Shutoff Head, 60 W, 115 VAC 60 Hz 1 A 1/50 hp, 6.5 psi Maximum, 1/2 gal Reservoir, Glass Filled Polypropylene Float, Wall Mount, 140 degree Fahrenheit, ABS, 11 inch length x 5 inch Width x7 inch HFeatures
Features
- Vertical centrifugal pump design
- 6 ft, 3-conductor cable with grounded 3-prong plug
- ABS motor cover, volute, tank, glass filled polypropylene impeller, acetal check valve
- Automatic start and stop operation
- For models with safety overflow switch - Dual function NO and NC operation (set to NO from factory for equipment shut down connection)
- Models equipped with safety overflow switch include two 5 in switch lead wires
- 3/8 in OD barbed discharge adapter with built-in check valve
- Thermally protected, fan cooled motor
- Three 1-1/8 in diameter inlet openings (two fitted with removable cap plug)
- Built-in wall mount tabs on tank
- Removable pump float locking tab for safety during transportation (remove at time of installation)
- Maximum Pressure: 6.5 psi
- Mounting Type: Wall
- Outlet Size: 3/8 in OD Barbed
- Reservoir Capacity: 1/2 gal
- Shutoff Head: 15 ft
- Temperature Rating: 140 deg F
- Warranty: 1 Year Limited
- Dimensions: 11 in L x 5 in W x7 in H
- Electrical Ratings: 115 VAC 60 Hz 1 A 1/50 hp
- Float Material: Glass Filled Polypropylene
