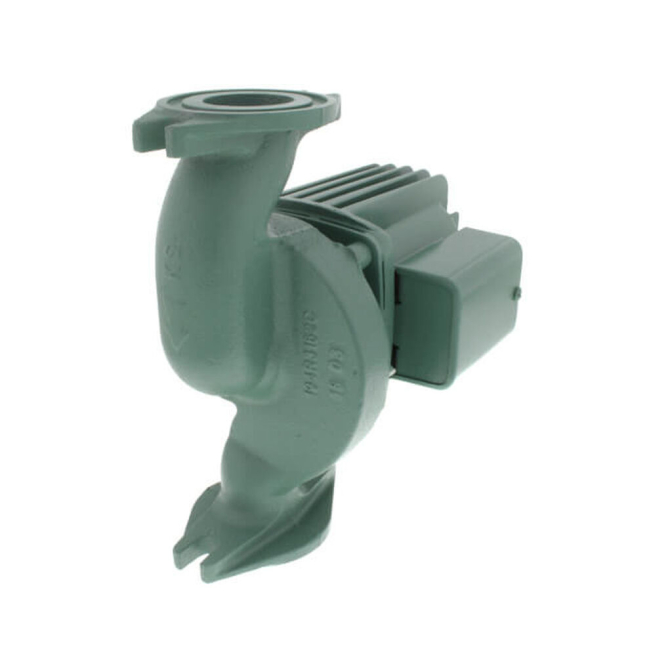

Taco Cartridge Circulator Pump, Single Phase, Series 0012, 50 gpm, 14-1/2 feet Maximum Head, 1/8 hp, 115 VAC, 1.33 A, 60 Hz, 125 psi Maximum, 3250 rpm Motor, 40 to 230 degree Fahrenheit, 8-5/8 inch length x 8-1/2 inch H
The High Velocity series Taco 0012 Cartridge Circulator is designed for high flow / medium head applications inch Large Residential / Light Commercial Hydronic heating, Radiameternt heating, and Chilled Water cooling systems. The unique ACB anti-condensate baffle with ambient air flow prevents the build up of condensate on the motor windings when pumping chilled water. Its unique field-serviceable cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. with no mechanical seal, the self-lubricating, maintenance free design provides unmatched reliability. Compact and lightweight with excellent performance characteristics, the 0012 is ideal for high efficiency jobs where space is a premium. Available inch Cast Iron or Bronze construction.
Features
Features
Frequency Rating: 60 Hz
Maximum Head: 14-1/2 ft
Maximum Pressure: 125 psi
Motor Speed: 3250 rpm
Power Rating: 1/8 hp
Type: Single Phase
Voltage Rating: 115 VAC
Dimensions: 8-5/8 in L x 8-1/2 in H
Exclusive, Anti Condensate Baffle (ACB) protects motor windings on chilled water jobs
Unmatched reliability-maintenance free
Universal flange to flange dimensions
Cast Iron or bronze case
Aluminum stator housing
Non metallic impeller
Stainless steel cartridge
Ceramic shaft
Carbon bearings
EPDM o-ring and gaskets
Available in cast iron, stainless steel or bronze construction - stainless steel or bronze can be used on open-loop systems
Unique, "00" family replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit
Universal flange-to-flange dimensions and orientation allow the 0012 to easily replace other models
High velocity performance-compact design quiet, efficient operation
