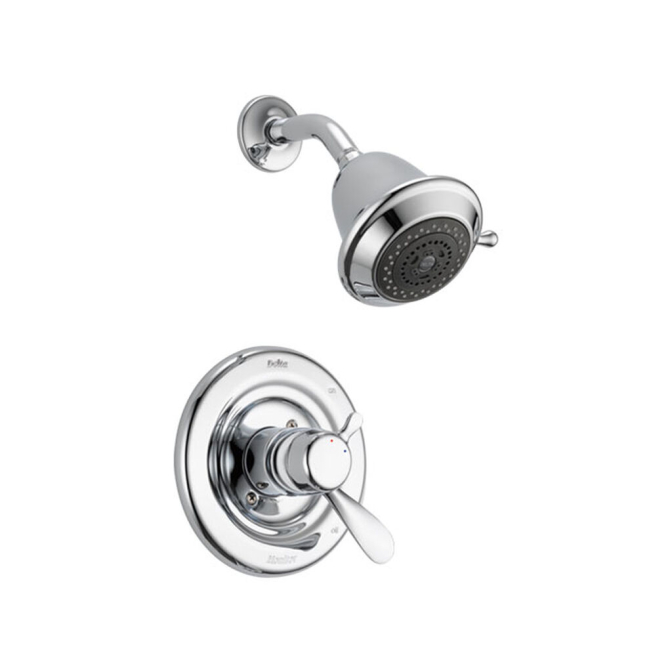

Delta T17230 Single-Handle Classic Shower Trim 7 inch Non-Diverter Spout Chrome 2.5 gpm Monitor 13 Series Collection
More Information
Diameter
3/8" x 1/2"
Material
Brass
Description
Details
DELTA Shower Trim, Series: Monitor 17, Classic Collection, 2.5 gpm, Lever Handle, 1 Handles, Spray Pattern: Full Body/Massaging/Drenching Spray, Wall Mount, Pressure Balanced Valve/Cartridge, 10-1/16 inch height x 7-19/32 inch Width x 10-23/32 inch D, Commercial
Designed for performance, the Classic Bath Collection provides smart technology that will stand the test of time.
Features
Features
Flow Rate: 2.5 gpm
Warranty: Limited Lifetime
Height: 10-1/16 in
Width: 7-19/32 in
Depth: 10-23/32 in
WaterSense certification promotes water conservation
Lever volume control handle temperature adjustment dial
Field Adjustable to limit handle rotation into hot water zone
Maximum dial rotation Adjustable between 90 and 180 deg
All parts replaceable from the front of the valve
2.5 gpm at 80 psi
Pressure balance valve keeps water temperature within a safe +/-3 deg F (+/-1.6 deg C), helping to protect you from sudden changes in hot or cold water pressure
Soft, rubber spray holes allow you to easily wipe away calcium and lime buildup from the spray face of your showerhead and hand shower with the touch of a finger
Trim kit only, must order MultiChoice universal rough-in separately to complete the unit
Dial adjusts temperature - handle adjusts volume
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
For use with MultiChoice universal rough valve body
