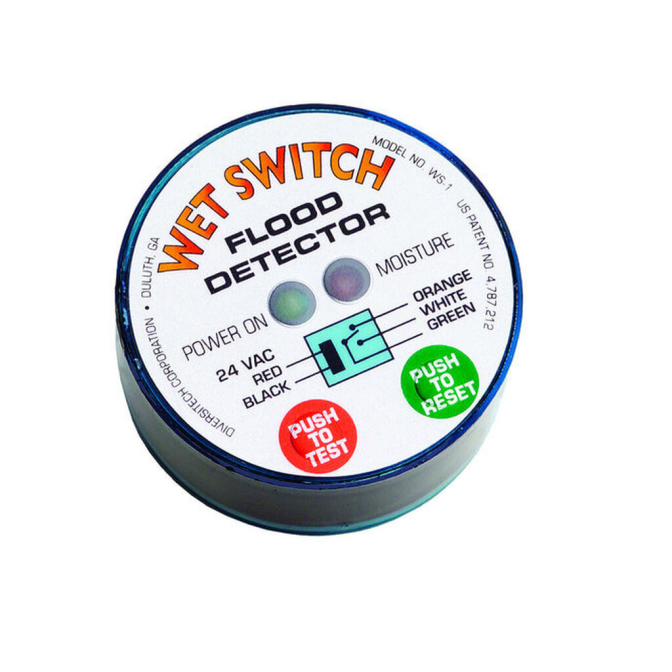

Diversitech Wet Switch Flood Detector, 18/30 VAC, 1.5 W, 50/60 Hz for use with Condensate Drain Pan
A solid state control designed to help prevent flooding, damage to carpets, walls, furniture, ceilings, etc. Now has a built-in test and reset button for easier installation. Turns system off when detecting moisture due to condensate or drain leaks. One or two drops will cause Wet Switch to turn off a unit, alerting a serviceman to a moisture problem. A lit LED indicates the Wet Switch is activated and has turned the unit off. Reset simply by drying the absorbent pad with a paper towel and pressing the reset switch. Connects to 24 VAC. More than one unit may be connected to a system. 2 amp contact rating. Simple 5 wire installation. Sales displays available.
Features
Features
A high tech polymeric fiber quickly draw water into the sensor array using proven capillary technology
Integral feet raise the hydrophilic pay and sensor array off the drain pans slightly to prevent nuisance tripping, and pans corrosion (metals pans only) from interfering with the sensor array
A high tech array of multiple stainless steel sensor detects even a minimal amounts of water drawn into the hydrophilic pay
The technology is packed into a 3-5/8 in dia be 1-1/4 in high cylinder, furnished complete with 5-conductor 22 AWG stranded cable, 6 ft long
Proven electronics prevent mechanical failure in an aggressive operating environment
Allow for the wiring to interrupt the system and sound an alarm (be others) when moisture is detected
Multiple units connectivity allow for multiple wet Switch flood detectors to be connected in series to adequately cover large drain pans area
