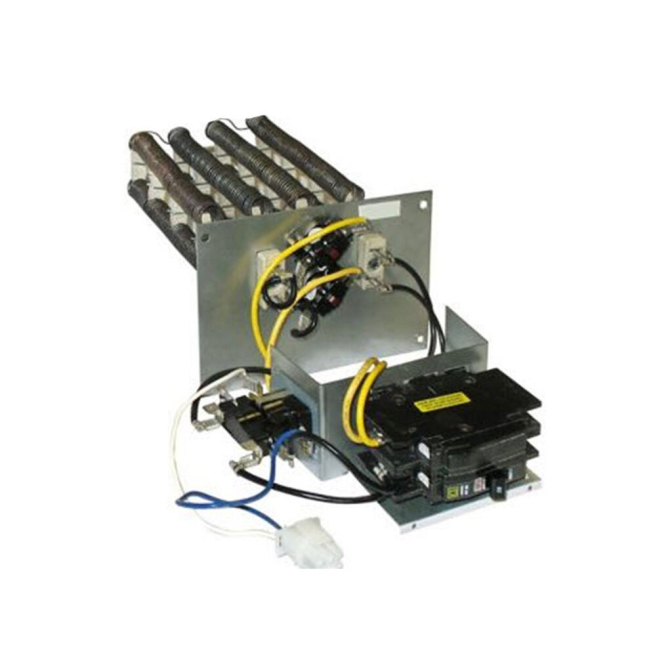

Electric Heat Kit With Terminal Block, 10 kW 208/230 V 1 ph 60 Hz
$152.81
In stock
SKU
2004460
More Information
Diameter
1" x 1/2" x 1"
Description
Details
Armstrong Air Electric Heat Kit, Accessory Type: Electric Heat Kit, Series: ECBA25, For Use With: Model BCE5V24/BCE5V30/BCE5V36/BCE5V42/BCE5V48/BCE5V60 Enhanced Air Handler, 10 kW 208/230 V 1 ph 60 Hz, 11.38 in W x 21.18 in D x 6.5 in H
Features
ETL listed
Field install internal to unit cabinet
Available in several voltages and kW sizes, see specific Air Handler Tables
Helix wound nichrome heating elements exposed directly in air stream resulting in instant heat transfer, low element temperatures and long service life
Each element equipped with accurately located limit control with fixed temperature off setting and automatic reset
Supplemental thermal cutoff limit control, provides positive protection in case of excessive temperatures
Thermal sequencer relay brings elements on and off line, in sequence and equal increments, with time delay between each
Initiates and terminates blower operation
Heating control relay(s) furnished as standard
Control box and access cover constructed of heavy gauge galvanized steel
Factory assembled with controls installed and wired
Electric heat low voltage controls plug-in to air handler
