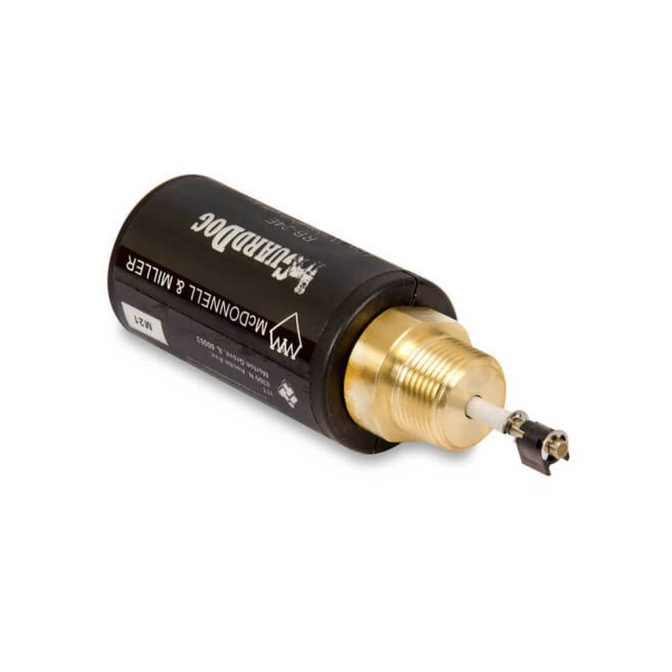

Electronic Low Water Cut-Off, 24V
$270.94
Electronic Low Water Cut-Off 2.5 VA
More Information | Diameter | 1-1/4" x 3/4" |
|---|
Description
Details
McDonnell & MillerLow Water Cut-Off, Electronic, Series: RB-24E, 2.5 VA, 2 A at 24 VAC Switching Capacity, 160 psi, 5-3/4 inch length x 1-7/8 inch WFeatures
Features
- Warranty: 1 Year from the Date of Installation or 2 Years from the Date of Manufacture
- Domestic/Import: Import
- Length: 5-3/4 in
- Width: 1-7/8 in
- Pressure Rating: 160 psi
- Switching Capacity: 2 A at 24 VAC
- Brass threads provide a metal-to-metal seal that ensures a leak-free installation
- Red LED indicating low water condition
- Solid state operation
- 15,000 ohms probe sensitivity
- Maximum ambient temperature 120 deg F (49 deg C)
- Maximum water temperature 250 deg F (121 deg C)
- Maximum water pressure of 160 psi (11.2 kg/cm-sq)
- 3/4 in connections
- Integrated wrench flats enable secure installation without damage to the housing
- McDonnell & Millers patented self-cleaning probe minimizes scale build-up and extends the recommended cleaning interval to 5 years
- Plug & Play wiring harnesses are available for most residential gas-burning boilers
- Universal wiring harness fits 100% of today's gas boilers
- Compact size
- Easy to install and wire
- Automatic reset feature resumes operations after a power outage when water is on probe
- Green LED indicating power is on
