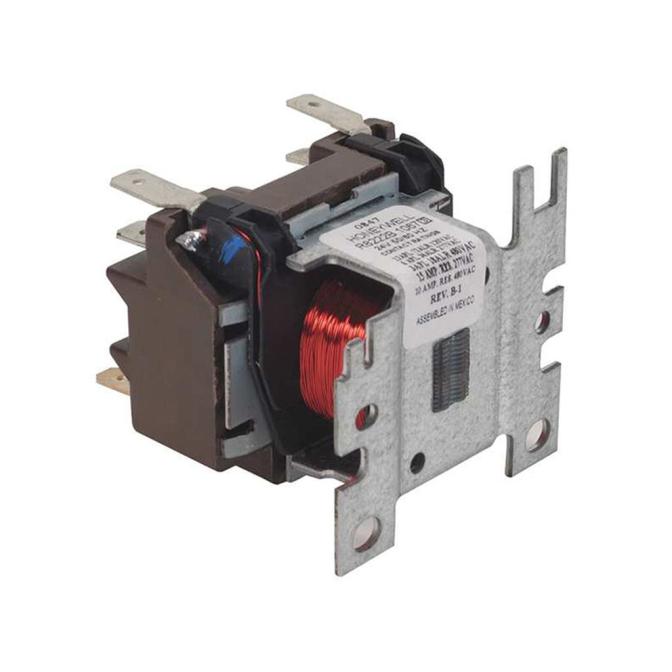

Honeywell Relay, General Purpose, Series: R8222, 50/60 Hz, 24 VAC Coil, 3 A Contact, -20 to 115 degree Fahrenheit, 1-7/8 inch height x 2-5/32 inch Width x 2-3/8 inch D
Provide heavy duty switching for refrigeration and air conditioning equipment, appliances, vending machines and similar applications.
Features
Features
Frequency Rating: 50/60 Hz
Temperature Range Display: -20 to 115 deg F
Coil Voltage: 24 VAC
Contact Rating: 3 A
Dimensions: 1-7/8 in H x 2-5/32 in W x 2-3/8 in D
Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation
Open coil assures cooler operation
Laminated magnet construction for high efficiency
Base designed for easy replacement of competitive relays
Plug compatible with Steveco 90-340 and Mars 90340
3 A at 480 VAC/12 A at 120 VAC AFL, 18 A at 480 VAC/60 A at 120 VAC ALR, 10 A at 480 VAC/20.8 A at 277 VAC resistive
