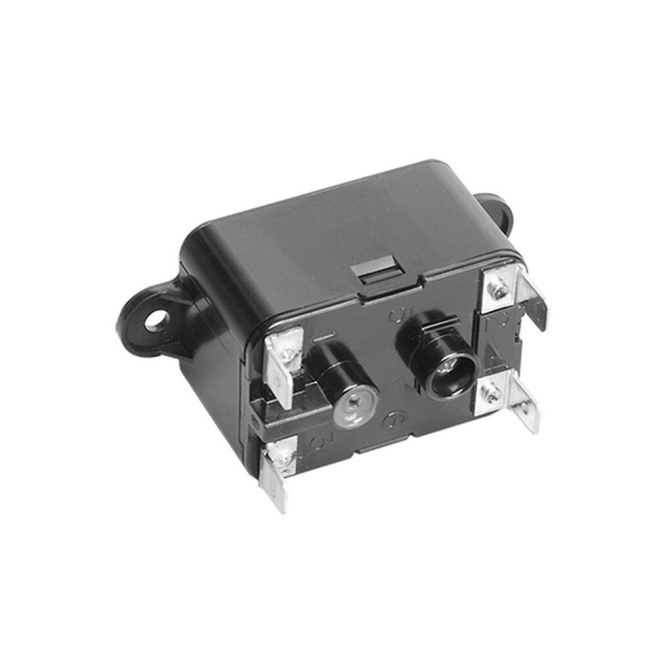

Mars Power Fan Relay, Series: 903, 60 Hz, 24 VAC Coil, SPST, 18 A Contact, Quick-Connect Terminal, 1 Pole, 2.056 inch Width x 2.5 inch H
The MARS Series 903 relays are among the most popular relays used inch air conditioning today. They will replace the WR/Essex/RBM Type 84 (90-290 thru 90-295) quick-connect and screw terminal versions. Relays control circuits through a low-power signal. An electro-magnetic current actuates the relay, creating a closed circuit within the device. General purpose relays are used in applications including HVAC systems, standby power supplies and telephone exchanges.
Features
Features
Frequency Rating: 60 Hz
Number of Poles: 1
Terminal Type: Quick-Connect
Coil Voltage: 24 VAC
Contact Form: SPST
Contact Rating: 18 A
Dimensions: 2.056 in W x 2.5 in H
1/4 in quick connect terminals
Replace 90-290 thru 90-295 and 90-290Q thru 90-295Q
